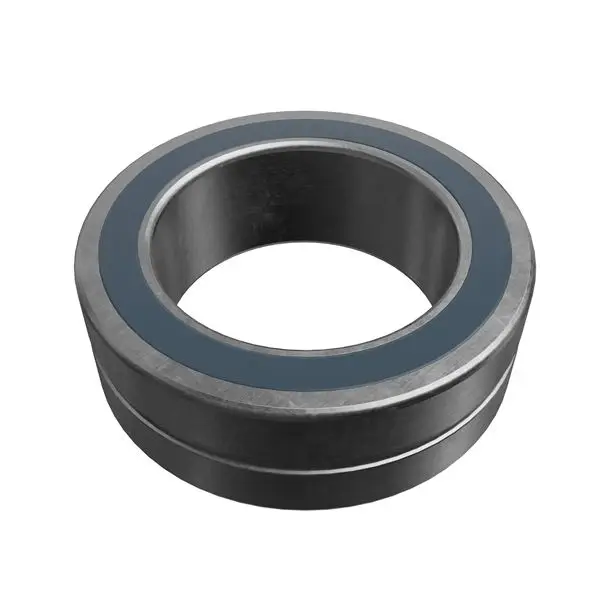

Timken 22207EJW33C3VSL609
Spherical Roller Bearings - Solid Lube
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Unit
Metric
d - Bore
35 mm
Lubrication Type
Industrial Grade Solid Lube
Cage Type
EJ
Cage Material
Steel
Factors
Maximum Operating Speed
1590 rpm
e - ISO Factor1
0.31
Y0 - ISO Factor2
2.16
Y1 - ISO Factor3
2.21
Y2 - ISO Factor4
3.29
Cg - Geometry Factor5
0.041
Dimensions
D - Outer Diameter
72 mm
B' - Inner Ring Width
23 mm
B - Outer Ring Width
23 mm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius6
1 mm
r - Outer Ring "To Clear" Radius7
1 mm
da - Inner Ring Backing Diameter
45.000 mm
Da - Outer Ring Backing Diameter
65.00 mm
Basic Load Ratings
C0 - Static Radial Rating
90500 N
C1(2) - Dynamic Radial Rating (Two-Rows)
88000 N
