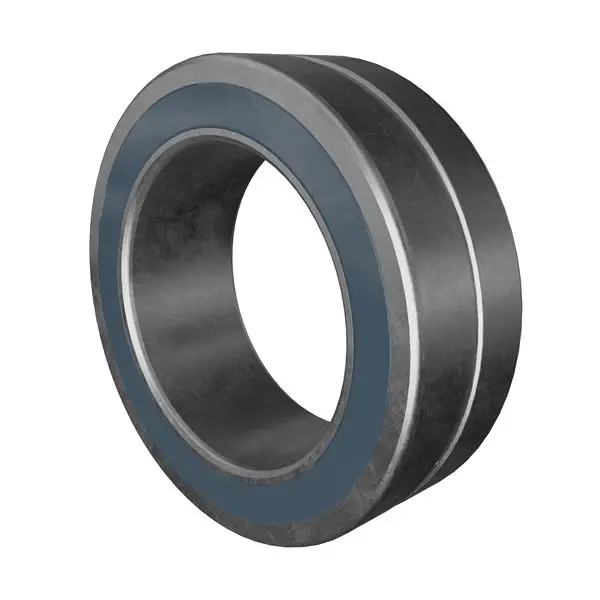

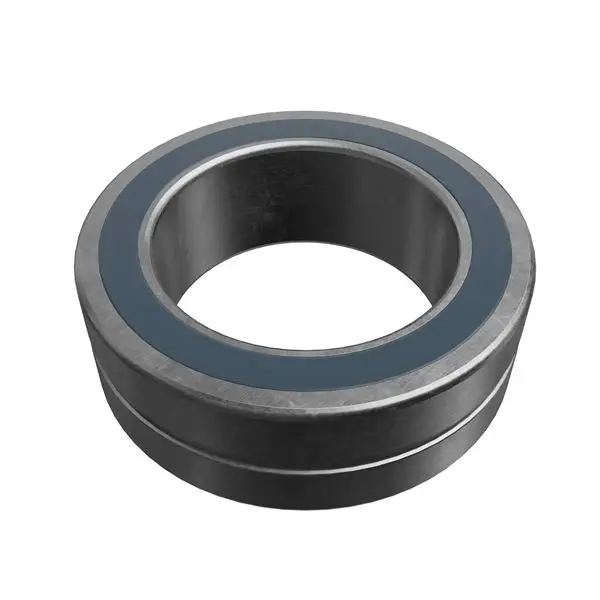

Timken 22309EJW33C3VSL609
Spherical Roller Bearings - Solid Lube
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Unit
Metric
d - Bore
45 mm
Lubrication Type
Industrial Grade Solid Lube
Cage Type
EJ
Cage Material
Steel
Factors
Maximum Operating Speed
1170 rpm
e - ISO Factor1
0.36
Y0 - ISO Factor2
1.86
Y1 - ISO Factor3
1.9
Y2 - ISO Factor4
2.83
Cg - Geometry Factor5
0.049
Dimensions
D - Outer Diameter
100 mm
B' - Inner Ring Width
36 mm
B - Outer Ring Width
36 mm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius6
1.5 mm
r - Outer Ring "To Clear" Radius7
1.5 mm
da - Inner Ring Backing Diameter
58.000 mm
Da - Outer Ring Backing Diameter
90.000 mm
Basic Load Ratings
C0 - Static Radial Rating
190000 N
C1(2) - Dynamic Radial Rating (Two-Rows)
182000 N
