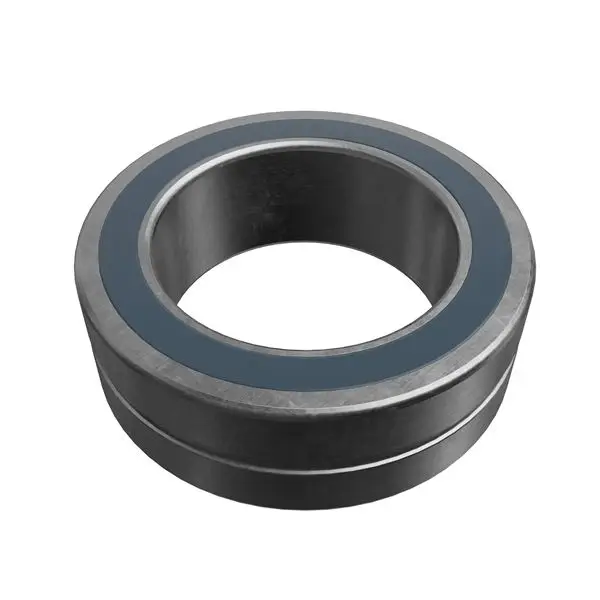

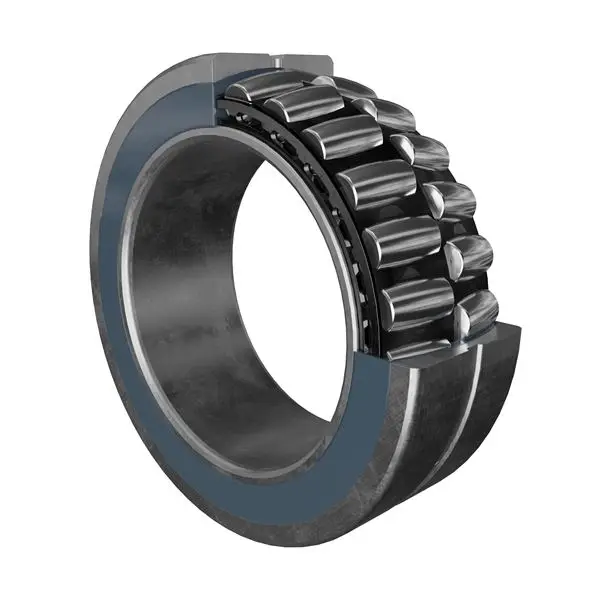

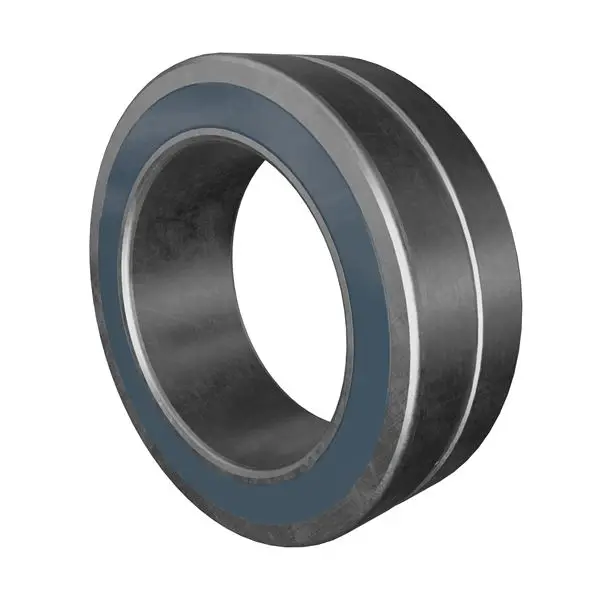

Timken 22320EJW33C3VSL609
Spherical Roller Bearings - Solid Lube
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Unit
Metric
d - Bore
100 mm
Lubrication Type
Industrial Grade Solid Lube
Cage Type
EJ
Cage Material
Steel
Factors
Maximum Operating Speed
540 rpm
e - ISO Factor1
0.33
Y0 - ISO Factor2
2.02
Y1 - ISO Factor3
2.06
Y2 - ISO Factor4
3.07
Cg - Geometry Factor5
0.0746
Dimensions
D - Outer Diameter
214.993 mm
B' - Inner Ring Width
73 mm
B - Outer Ring Width
73 mm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius6
2.5 mm
r - Outer Ring "To Clear" Radius7
2.5 mm
da - Inner Ring Backing Diameter
131 mm
Da - Outer Ring Backing Diameter
193.000 mm
Basic Load Ratings
C0 - Static Radial Rating
910000 N
C1(2) - Dynamic Radial Rating (Two-Rows)
804000 N
