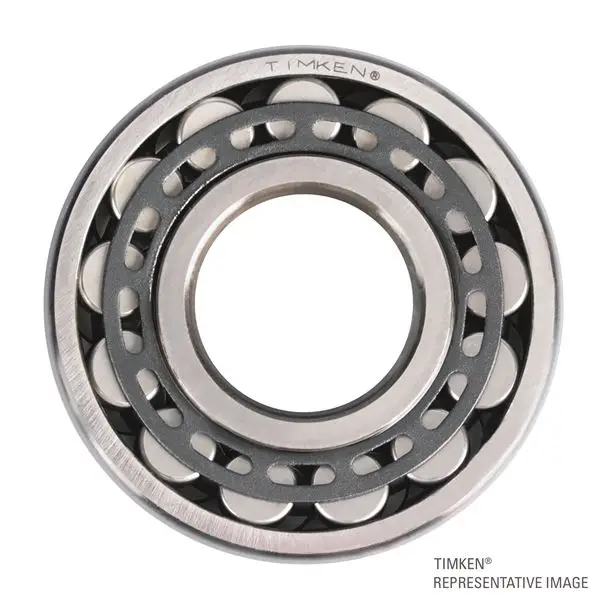

Timken 23076KEJW906A
Spherical Roller Bearings - Steel Cage
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
UPC Code
087796167216
Design Unit
Metric
d - Bore
380 mm
Lubrication Type
Standard Grease
Bore_Taper
1/12
Cage Type
EJ
Cage Material
Steel
Superseded Part
23076KCJW906A
Factors
e - ISO Factor1
0.22
Y0 - ISO Factor2
3.01
Y1 - ISO Factor3
3.08
Y2 - ISO Factor4
4.58
Reference Thermal Speed Rating (Grease)
710 rpm
Reference Thermal Speed Rating (Oil)5
830 rpm
Cg - Geometry Factor6
0.1419
Dimensions
D - Outer Diameter
560 mm
B' - Inner Ring Width
135 mm
B - Outer Ring Width
135 mm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius7
4 mm
r - Outer Ring "To Clear" Radius8
4 mm
da - Inner Ring Backing Diameter
420.000 mm
Da - Outer Ring Backing Diameter
520.000 mm
Basic Load Ratings
C0 - Static Radial Rating
5110000 N
C1(2) - Dynamic Radial Rating (Two-Rows)
3070000 N
