Timken 294/1000EM
Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
1000 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR

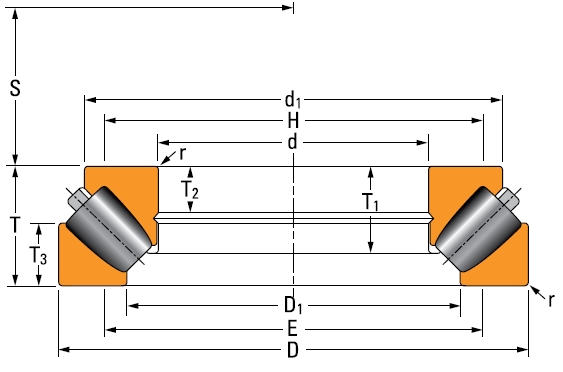

Dimensions
D - Outside Diameter
1670 mm
d1 - Cone Outside Diameter
1501 mm
D1 - Cup Bore
1225 mm
E - Shoulder Diameter - Housing (Max)
1319 mm
H - Shoulder Diameter - Shaft (Min)
1385.1 mm
r - Fillet Radius
12 mm
S - Dimension
580 mm
T - Total Width
402 mm
T1 - Cage Position
289.9 mm
T2 - Groove Position
162 mm
T3 - Cup Width
208.5 mm
Basic Load Ratings
Static Load Rating
148040000 N
Dynamic Load Rating
32590000 N
Thermal Speed Rating
140 rpm
