Timken 294/710EM
Thrust Spherical Roller Bearings-Type TSR
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
d - Bore
710 mm
Bearing Type
Thrust Spherical Roller Bearings - TSR
UPC Code
87796241091

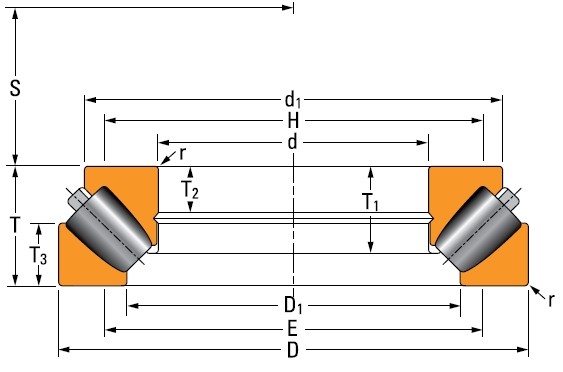

Dimensions
D - Outside Diameter
1220 mm
d1 - Cone Outside Diameter
1092 mm
D1 - Cup Bore
879 mm
E - Shoulder Diameter - Housing (Max)
953 mm
H - Shoulder Diameter - Shaft (Min)
1003 mm
r - Fillet Radius
12 mm
S - Dimension
414 mm
T - Total Width
308 mm
T1 - Cage Position
222.61 mm
T2 - Groove Position
122.66 mm
T3 - Cup Width
160 mm
Basic Load Ratings
Static Load Rating
81300000 N
Dynamic Load Rating
19060000 N
Thermal Speed Rating
210 rpm
