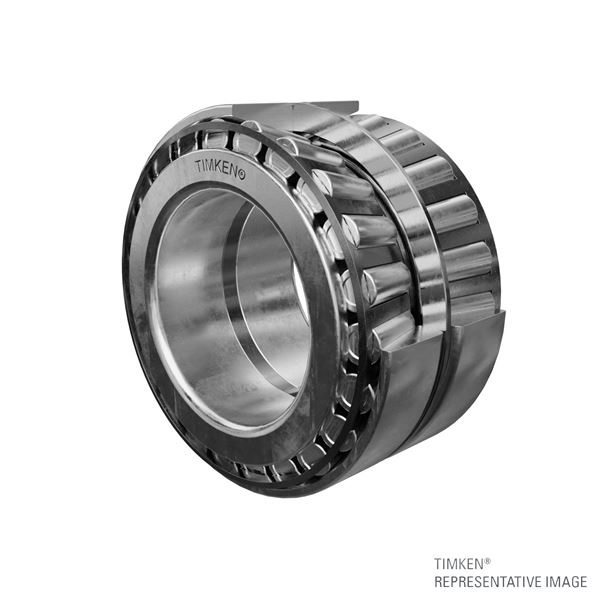

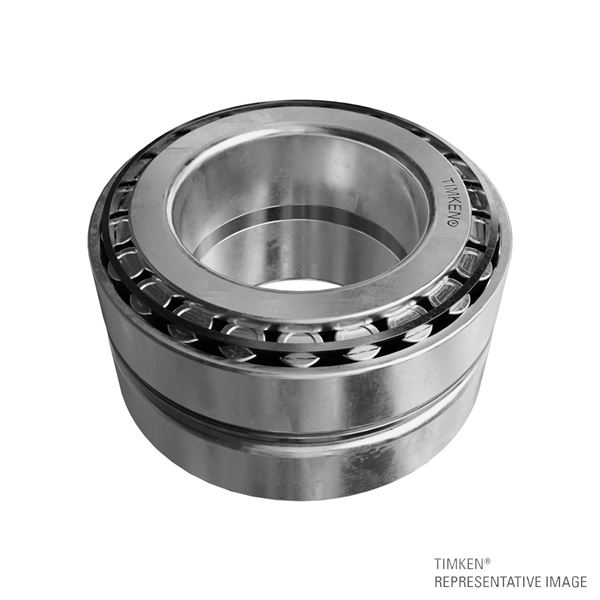

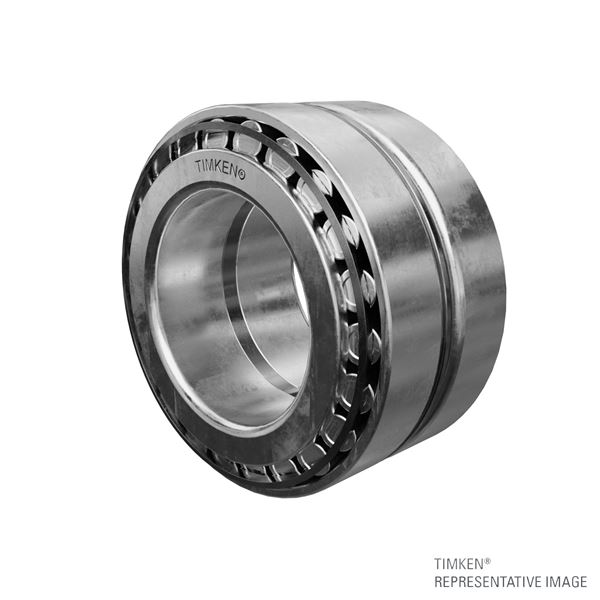

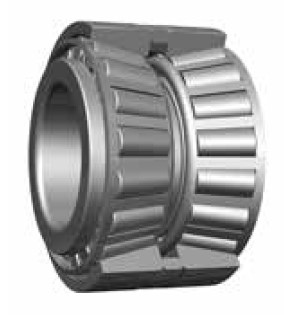

Timken 3383 – 3320 (X1S-3383 – Y1S-3320)
Tapered Roller Bearings - 2TS-IM (Matched Bearing Assembly, Indirect Mount)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
3383 – 3320 (X1S-3383 – Y1S-3320)
Specifications
Cone Part Number
3383
Cup Part Number
3320
Inner Spacer Part Number
X1S-3383
Outer Spacer Part Number
Y1S-3320
Design Unit
Inch
Dimensions
d - Bore
41.275 mm
D - Cup Outer Diameter
80.167 mm
T - Width
66.675 mm
C - Width
55.56 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.600 mm
r - Cup Backface "To Clear" Radius2
0.8 mm
db - Cone Backface Backing Diameter
54 mm
Da - Cup Frontface Backing Diameter
75.90 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
29800 N
C1 - Dynamic Radial Rating (1 million revolutions)4
200000 N
C5
13900 N
C906
51900 N
Factors
K - Factor7
2.14
e - ISO Factor8
0.27
Y1 - ISO Factor9
2.47
Y2 - ISO Factor10
3.68
