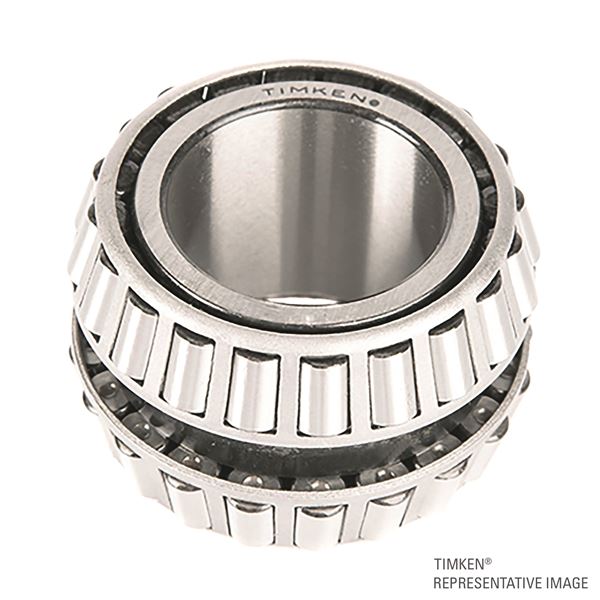

Timken 358D
Tapered Roller Bearings - Double Tapered Cones - Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
355
Cone Part Number
358D
Design Units
Imperial
Cage Type
Stamped Steel
C1 - Dynamic Radial Rating (1 million revolutions)1
81800 N
C0 - Static Radial Rating
88800 N

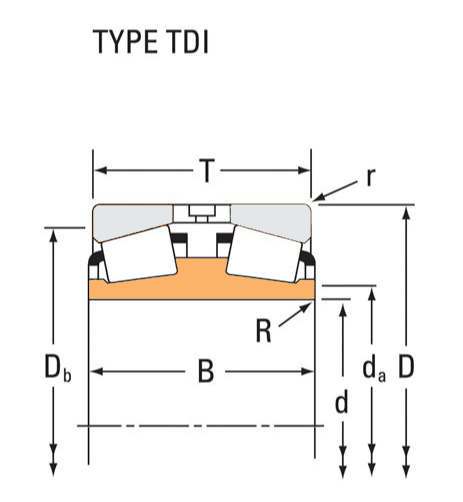

Dimensions
d - Cone Bore
42.863 mm
B - Double Cone Width
52.375 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius2
1.5 mm
da - Cone Frontface Backing Diameter
51 mm
Ab - Cage-Cone Frontface Clearance
2.3 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
21200 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)4
142000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)5
36900 N
C6
11100 N
Factors
K - Factor7
1.91
Cg - Geometry Factor8
0.0732
