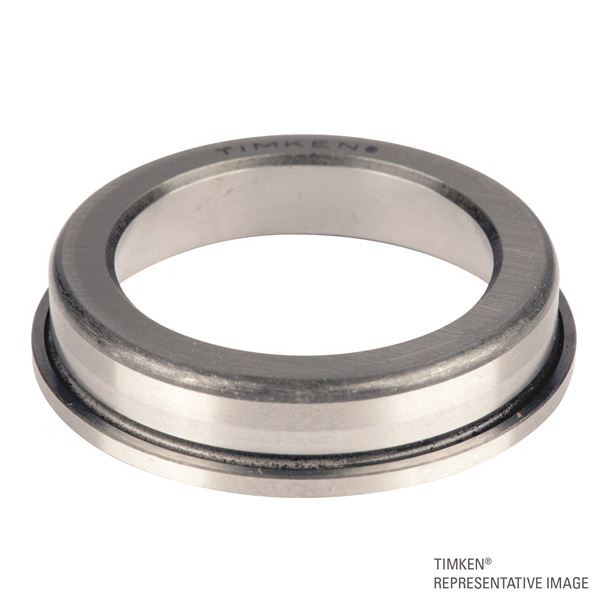

Timken 362AB
Tapered Roller Bearings - Single Flanged Cups - Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
365
Cup Part Number
362AB
Design Units
Imperial

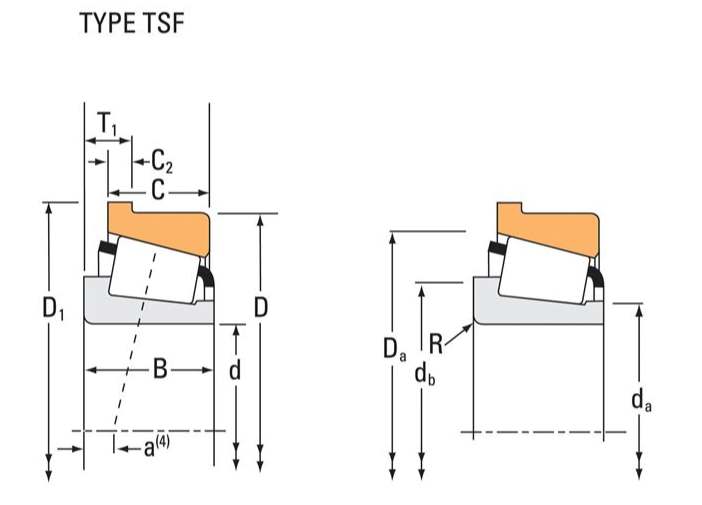

Dimensions
D - Cup Outer Diameter
88.900 mm
D1 - Flange Outer Diameter
93.663 mm
C - Cup Width
16.513 mm
C1 - Cup Flange Width
4.763 mm
Abutment and Fillet Dimensions
r - Cup Backface "To Clear" Radius1
1.3 mm
Da - Cup Frontface Backing Diameter
86.11 mm
Factors
K - Factor2
1.83
e - ISO Factor3
0.32
Y - ISO Factor4
1.88
Cg - Geometry Factor5
0.0773
