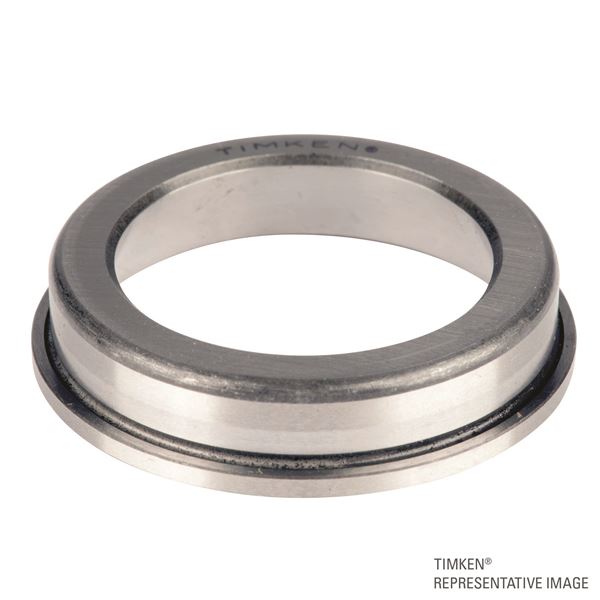

Timken 394AB
Tapered Roller Bearings - Single Flanged Cups - Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
395
Cup Part Number
394AB
Design Units
Imperial

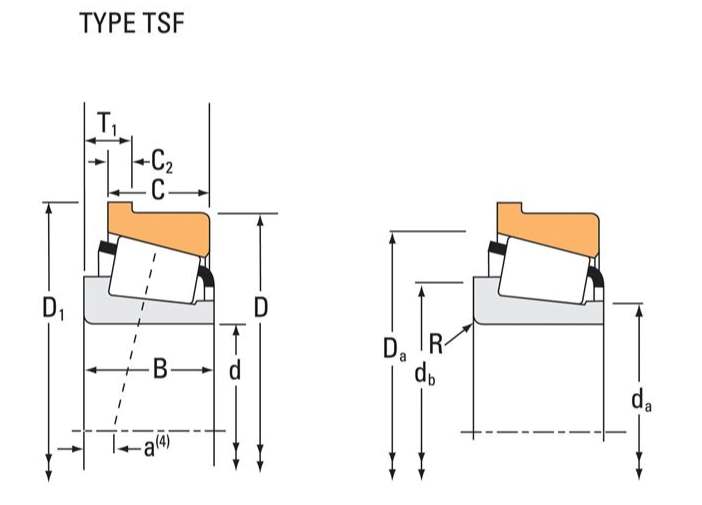

Dimensions
D - Cup Outer Diameter
110 mm
D1 - Flange Outer Diameter
114.673 mm
C - Cup Width
18.824 mm
C1 - Cup Flange Width
4.750 mm
Abutment and Fillet Dimensions
r - Cup Backface "To Clear" Radius1
1.3 mm
Da - Cup Frontface Backing Diameter
105.92 mm
Factors
K - Factor2
1.45
e - ISO Factor3
0.4
Y - ISO Factor4
1.49
Cg - Geometry Factor5
0.0984
