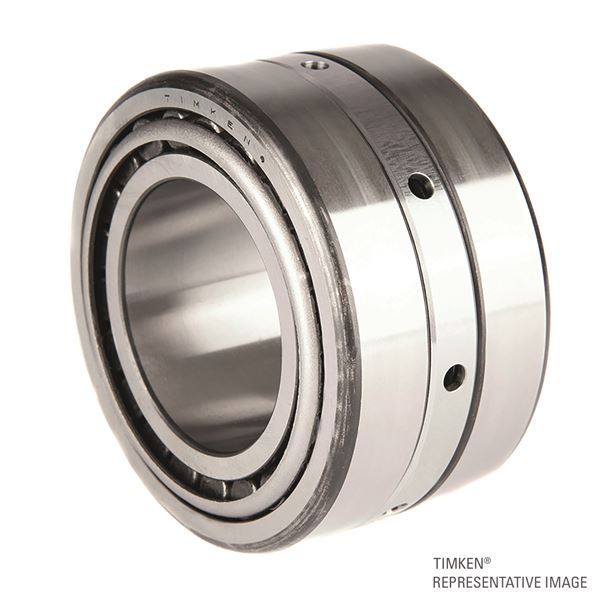

Timken 39585D – 39520XX

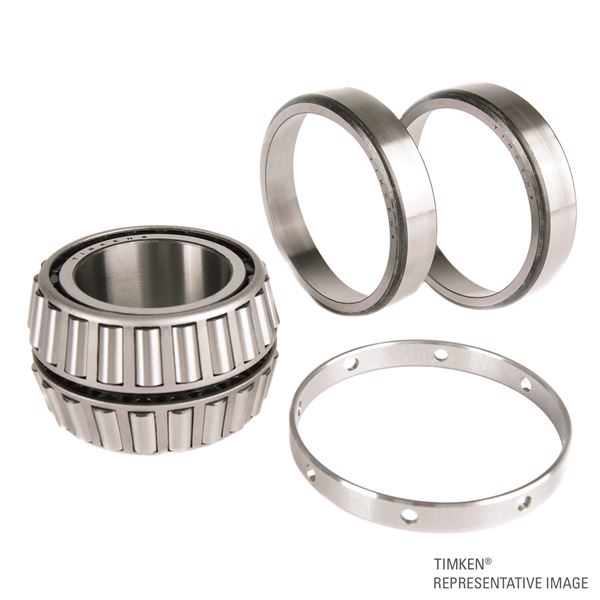

Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
39500
Cone Part Number
39585D
Cup Part Number
39520XX
Design Unit
Inch
Cage Material
Stamped Steel
Dimensions
d - Bore
63.500 mm
D - Cup Outer Diameter
112.713 mm
B - Double Cone Width
60.325 mm
C - Cup Width
23.813 mm
T - Bearing Width across Cups
60.325 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
0.800 mm
r - Cup Backface "To Clear" Radius2
3.30 mm
da - Cone Frontface Backing Diameter
72 mm
Db - Cup Backface Backing Diameter
101.09 mm
Ab - Cage-Cone Frontface Clearance
3.3 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)3
43300 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)4
291000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)5
75400 N
C6
25100 N
Factors
K - Factor7
1.72
e - ISO Factor8
0.34
Y1 - ISO Factor9
1.99
Y2 - ISO Factor10
2.96
G1 - Heat Generation Factor (Roller-Raceway)
84.3
G2 - Heat Generation Factor (Rib-Roller End)
23.7
Cg - Geometry Factor11
0.107
