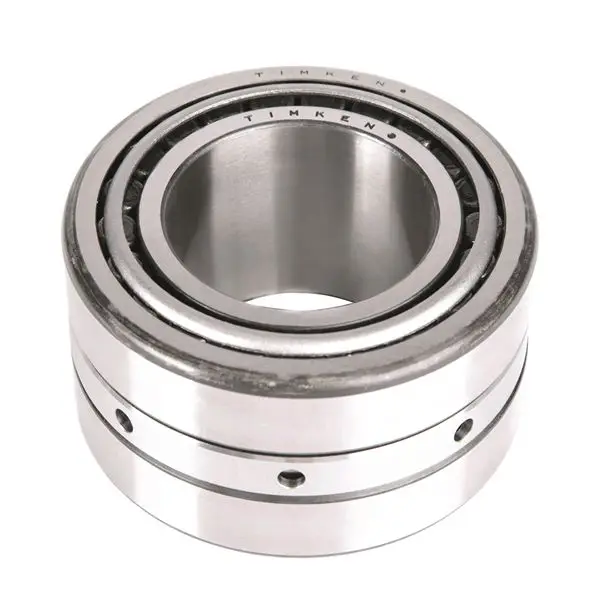

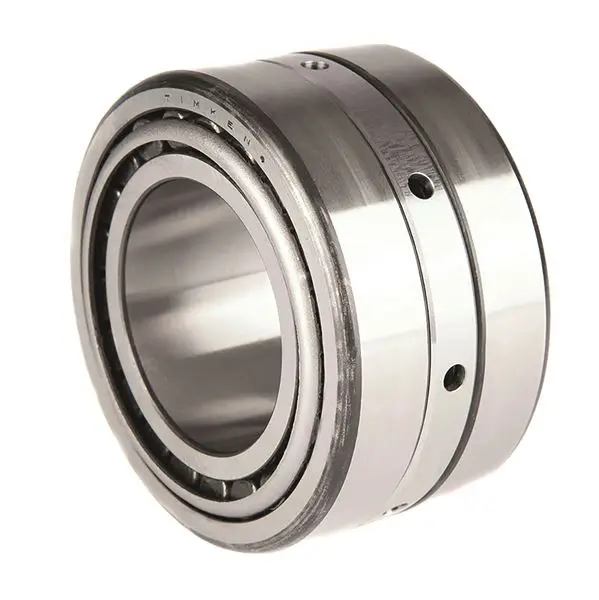

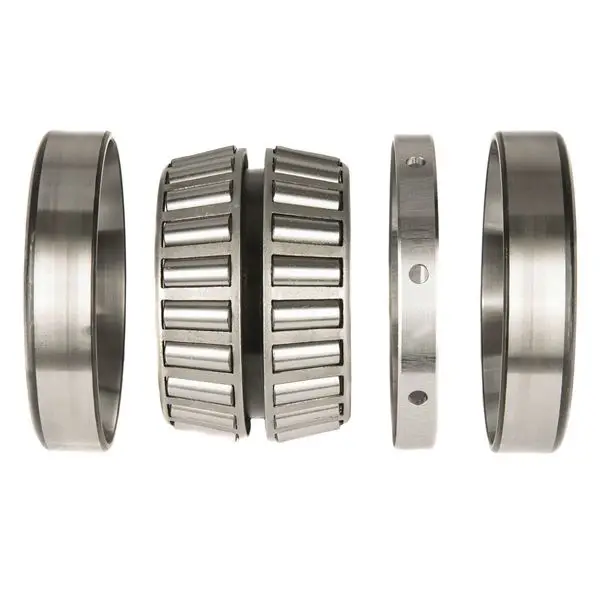

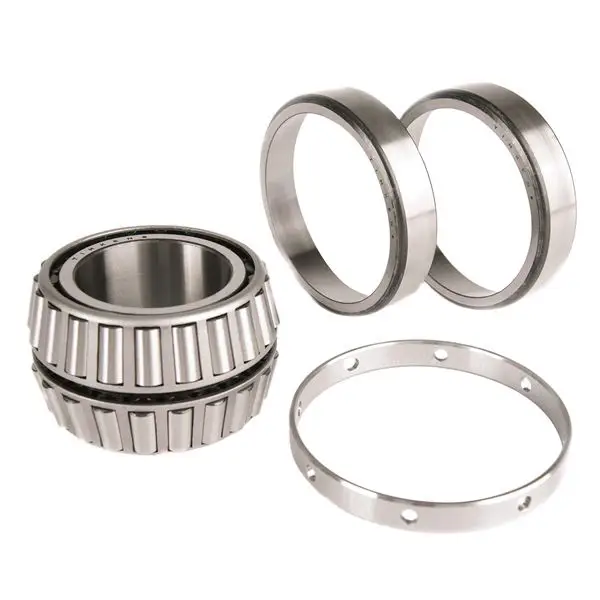

Timken 42362D – 42587
Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
42000
Cone Part Number
42362D
Cup Part Number
42587
Design Unit
Inch
Cage Material
Stamped Steel
Dimensions
d - Bore
92.075 mm
D - Cup Outer Diameter
149.225 mm
B - Double Cone Width
57.942 mm
C - Cup Width
24.608 mm
T - Bearing Width across Cups
63.497 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
1.5 mm
r - Cup Backface "To Clear" Radius2
3.30 mm
da - Cone Frontface Backing Diameter
104 mm
Db - Cup Backface Backing Diameter
134.11 mm
Ab - Cage-Cone Frontface Clearance
3.6 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)3
42200 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)4
284000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)5
73500 N
C6
35600 N
Factors
K - Factor7
1.19
e - ISO Factor8
0.49
Y1 - ISO Factor9
1.37
Y2 - ISO Factor10
2.04
Cg - Geometry Factor11
0.139
