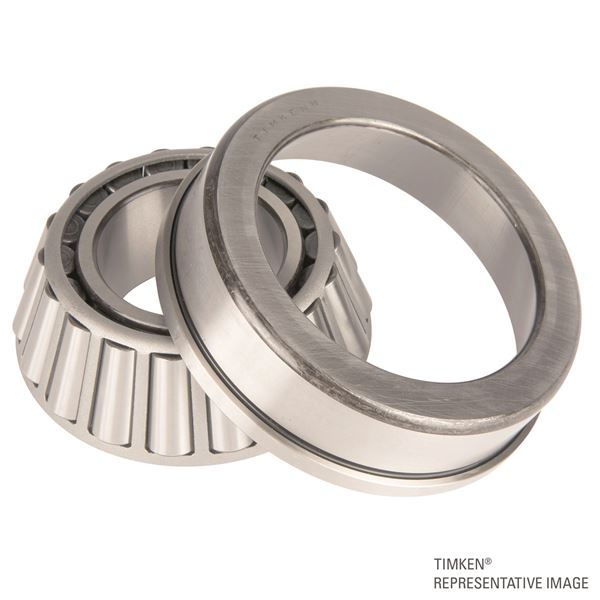

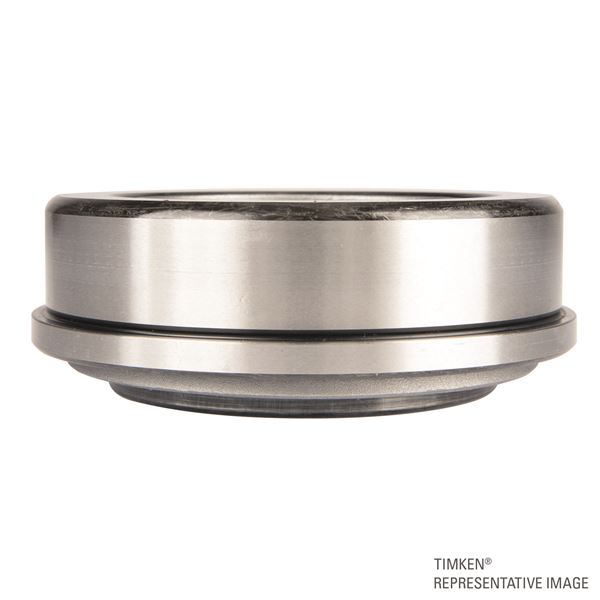

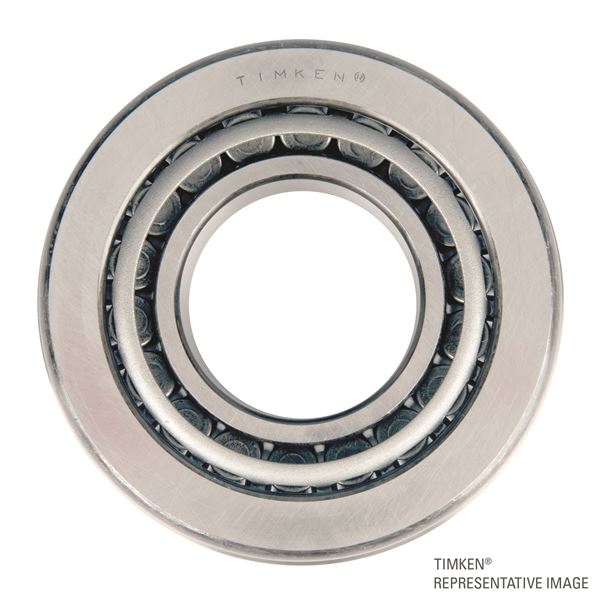

Timken 465 – 453-B
Tapered Roller Bearings - TSF (Tapered Single with Flange) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
455
Cone Part Number
465
Cup Part Number
453-B
Design Unit
Inch
Cage Material
Stamped Steel

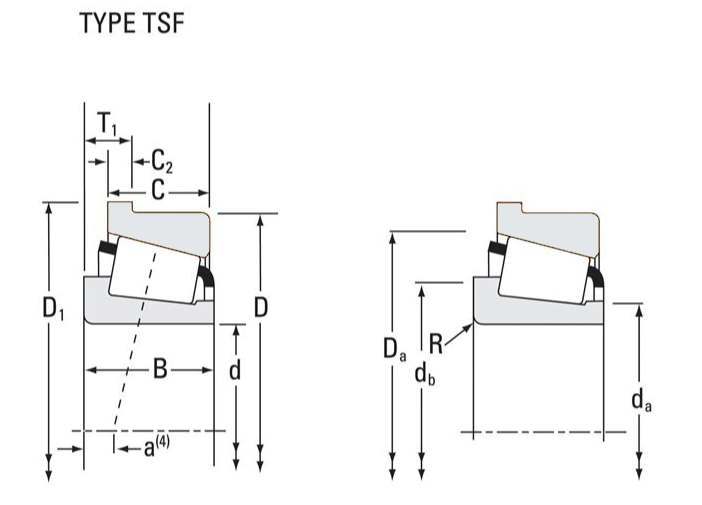

Dimensions
d - Bore
50 mm
D - Cup Outer Diameter
107.95 mm
D1 - Flange Outer Diameter
113.386 mm
B - Cone Width
29.317 mm
C - Cup Width
22.225 mm
C1 - Cup Flange Width
5.558 mm
T1 - Bearing Width to Flange
11.112 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
2.300 mm
r - Cup Backface "To Clear" Radius2
0.8 mm
da - Cone Frontface Backing Diameter
58 mm
db - Cone Backface Backing Diameter
62 mm
Da - Cup Frontface Backing Diameter
100.58 mm
Ab - Cage-Cone Frontface Clearance
2 mm
Aa - Cage-Cone Backface Clearance
1.8 mm
a - Effective Center Location3
-7.1 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)4
41700 N
C1 - Dynamic Radial Rating (1 million revolutions)5
161000 N
C0 - Static Radial Rating
166000 N
C6
23900 N
Factors
K - Factor7
1.74
e - ISO Factor8
0.34
Y - ISO Factor9
1.79
G1 - Heat Generation Factor (Roller-Raceway)
58.6
G2 - Heat Generation Factor (Rib-Roller End)
17.1
Cg - Geometry Factor10
0.0946
