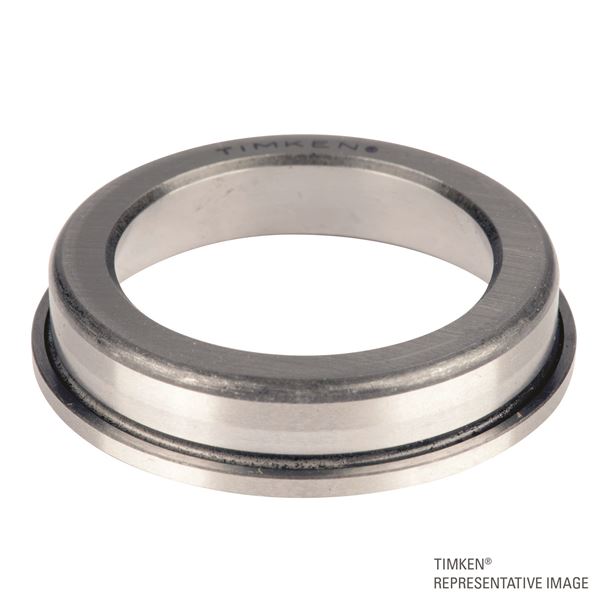

Timken 47622-BW
Tapered Roller Bearings - Single Flanged Cups - Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
47600
Cup Part Number
47622-BW
Design Units
Imperial

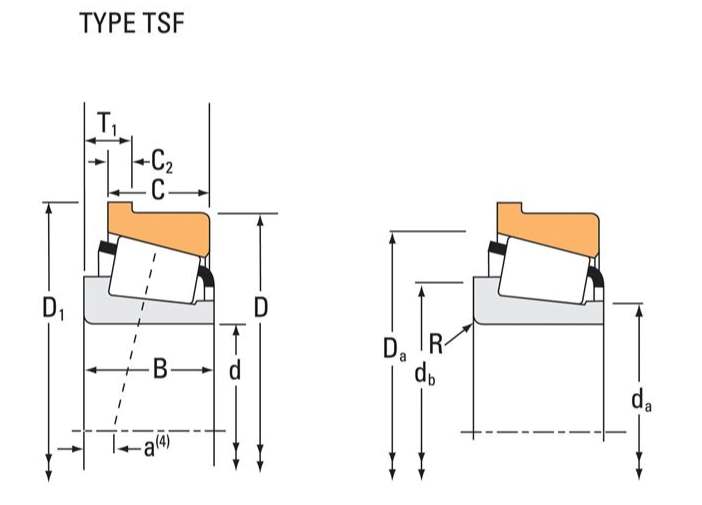

Dimensions
D - Cup Outer Diameter
136.525 mm
D1 - Flange Outer Diameter
143.566 mm
C - Cup Width
51.595 mm
C1 - Cup Flange Width
8.733 mm
Abutment and Fillet Dimensions
r - Cup Backface "To Clear" Radius1
3.30 mm
Da - Cup Frontface Backing Diameter
130.05 mm
Factors
K - Factor2
1.44
e - ISO Factor3
0.4
Y - ISO Factor4
1.48
Cg - Geometry Factor5
0.127
