Timken 48620
Tapered Roller Bearings - Single Cups - Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
48600
Cup Part Number
48620
Design Units
Imperial

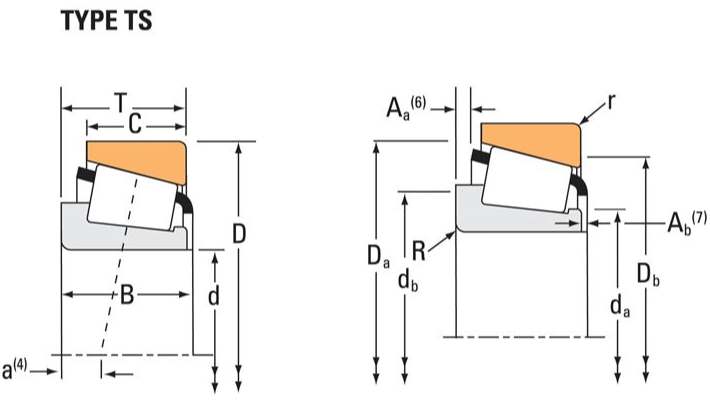

Dimensions
D - Cup Outer Diameter
200.025 mm
C - Cup Width
34.13 mm
Abutment and Fillet Dimensions
r - Cup Backface "To Clear" Radius1
0.762 mm
Da - Cup Frontface Backing Diameter
193.04 mm
Factors
K - Factor2
1.74
e - ISO Factor3
0.34
G1 - Heat Generation Factor (Roller-Raceway)
439.6
G2 - Heat Generation Factor (Rib-Roller End)
130.5
