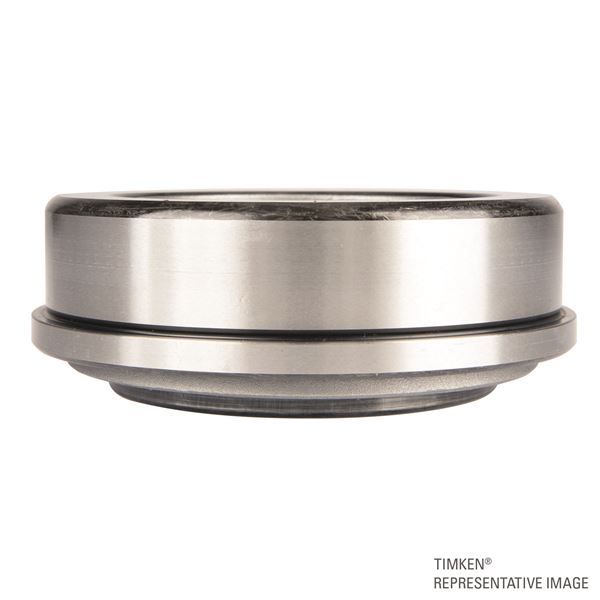

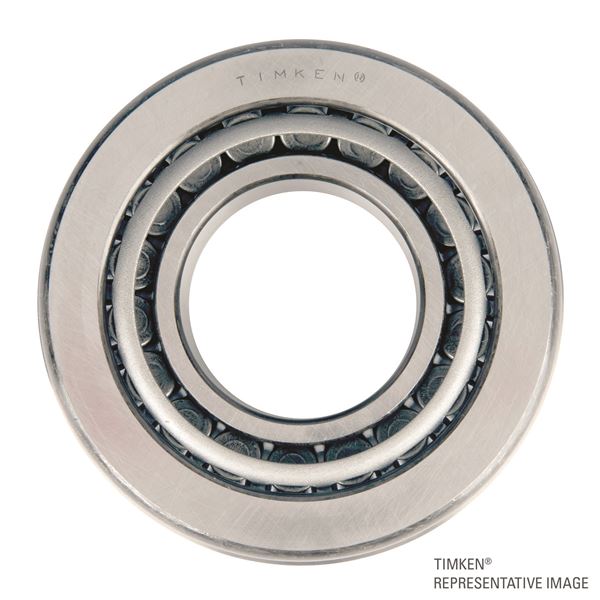

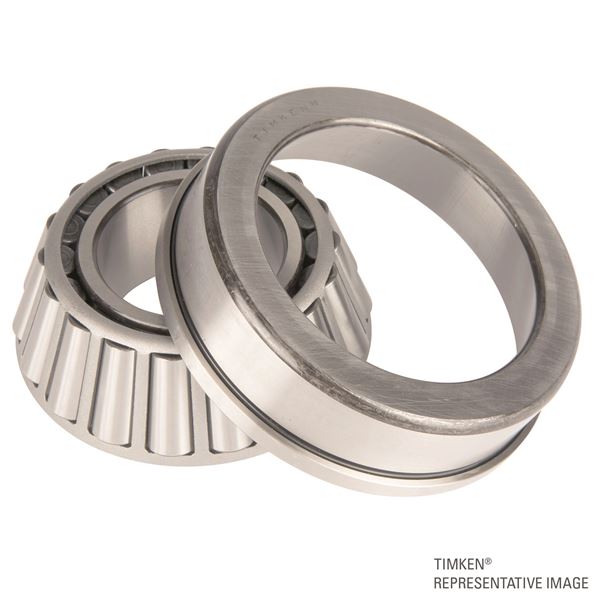

Timken 65212 – 65500-B
Tapered Roller Bearings - TSF (Tapered Single with Flange) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
65212 – 65500-B
Specifications
Series
65000
Cone Part Number
65212
Cup Part Number
65500-B
Design Unit
Inch
Cage Material
Stamped Steel

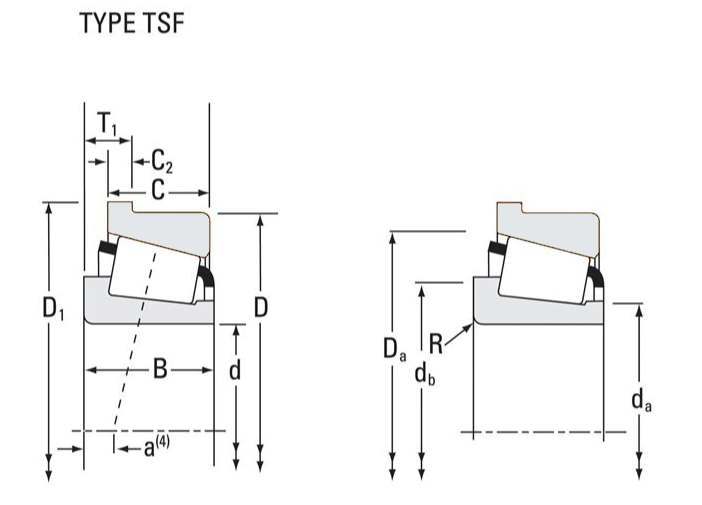

Dimensions
d - Bore
53.975 mm
D - Cup Outer Diameter
127 mm
D1 - Flange Outer Diameter
134.041 mm
B - Cone Width
44.45 mm
C - Cup Width
34.925 mm
C1 - Cup Flange Width
7.145 mm
T1 - Bearing Width to Flange
16.670 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.600 mm
r - Cup Backface "To Clear" Radius2
3.30 mm
da - Cone Frontface Backing Diameter
71 mm
db - Cone Backface Backing Diameter
77 mm
Da - Cup Frontface Backing Diameter
120.65 mm
Ab - Cage-Cone Frontface Clearance
2 mm
Aa - Cage-Cone Backface Clearance
3.3 mm
a - Effective Center Location3
-9.4 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)4
63100 N
C1 - Dynamic Radial Rating (1 million revolutions)5
243000 N
C0 - Static Radial Rating
297000 N
C6
52700 N
Factors
K - Factor7
1.2
e - ISO Factor8
0.49
Y - ISO Factor9
1.23
Cg - Geometry Factor10
0.0827
