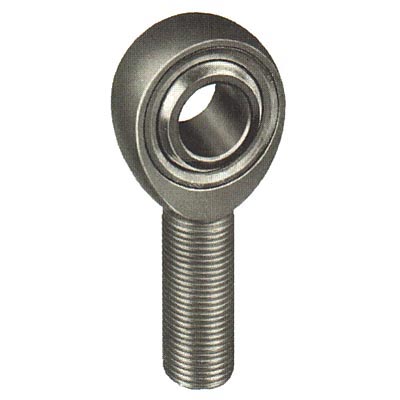

Timken AB-14T
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
AB-14T
Thread Type
Left Hand
Thread Configuration
Male
Thread Size
7/8-14
Thread Class
UNF-3A-LH

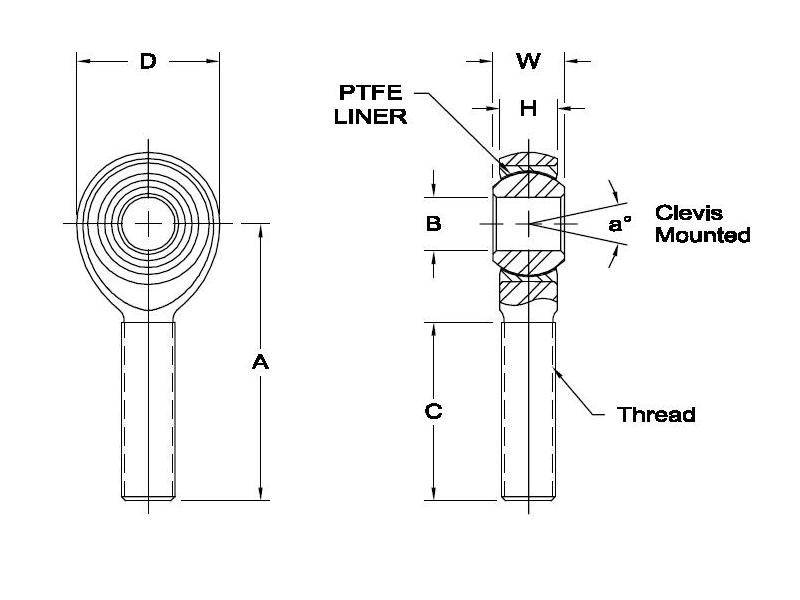

a - Misalignment Angle Clevis Mounted
7 º
Ultimate Radial Static Load Capacity
45,051 lbs
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
