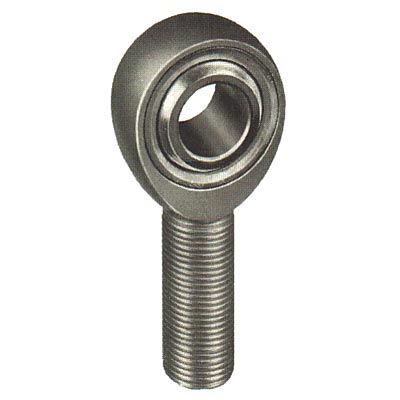

Timken AM-3T
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
AM-3T
Thread Type
Right Hand
Thread Configuration
Male
Thread Size
10-32
Thread Class
UNF-3A

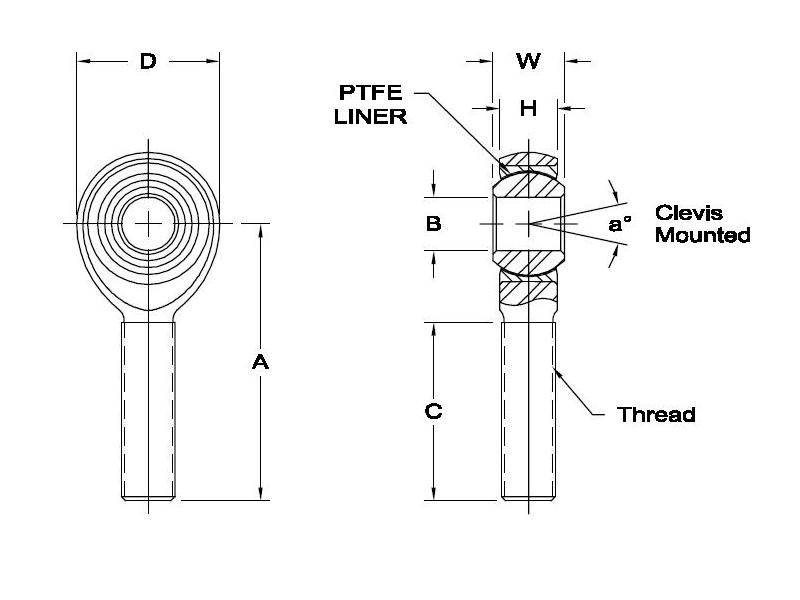

a - Misalignment Angle Clevis Mounted
13 º
Ultimate Radial Static Load Capacity
2,851 lbs
Options
Stud
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
