Timken AN 22/SK 10022/AN 18/W 18
Push-Type Removable Sleeve, Locknut and Lockwasher
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
222K

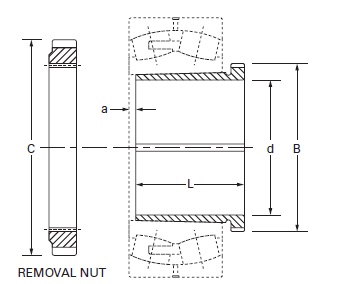

Removal Nut O.D. C
145.39 mm
Bearing Number
22220K
Taper
1:12
Shaft Dimensions
Diameter d
90 mm
Tolerance1
-0.10 mm
Adapter Dimensions
Major Diameter
109.12 mm
L2
59 mm
a
4 mm
Accessory Numbers
Removal Nut
AN 22
Sleeve
SK 10022
Locknut
AN 18
Lockwasher and Lockplates
W 18
