Timken N 052/SK 24023/N 44/W 44

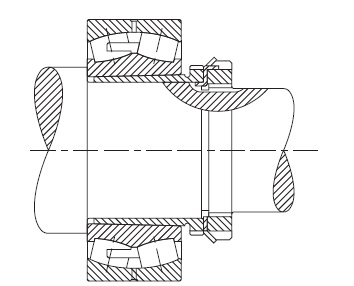

Push-Type Removable Sleeve, Locknut and Lockwasher
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
223K
Removal Nut O.D. C
309.7 mm
Bearing Number
22348K
Taper
1:12
Shaft Dimensions
Diameter d
220 mm
Tolerance1
-0.15 mm
Adapter Dimensions
Major Diameter
256.03 mm
L2
189 mm
a
8 mm
Accessory Numbers
Removal Nut
N 052
Sleeve
SK 24023
Locknut
N 44
Lockwasher and Lockplates
W 44
