Timken ANC-10TD2
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
ANC-10TD2
SAE Part Number
MS14104-10U
Bearing Type
Plain
a - Misalignment Angle
8 º
Radial Static Limit Load Capacity
30,500 lbs
Options
K= Low Rotational Breakaway Torque
Note

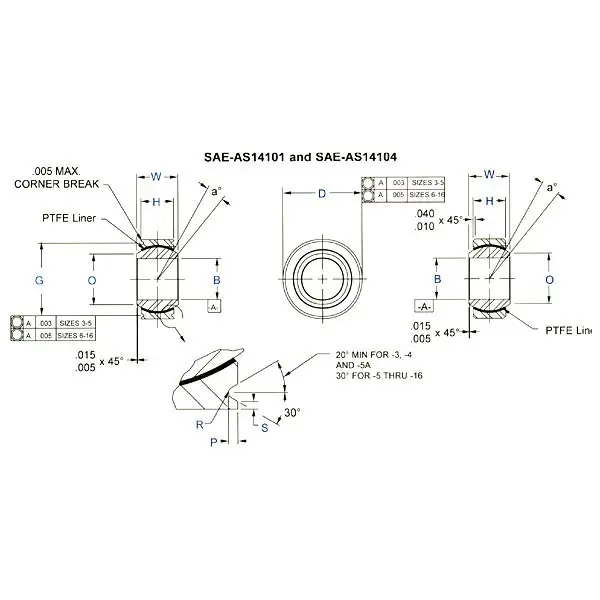

For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
