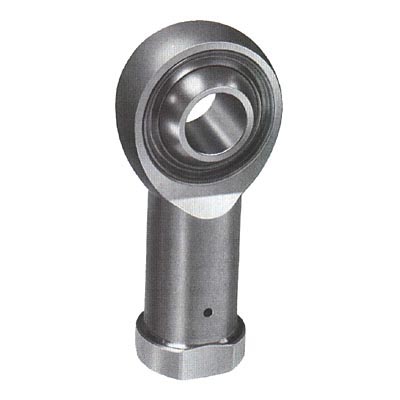

Timken ASG-16-10
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
ASG-16-10
Thread Type
Left Hand
Thread Configuration
Female
Thread Size
1 1/4-12
Thread Class
UNJF-3B-LH

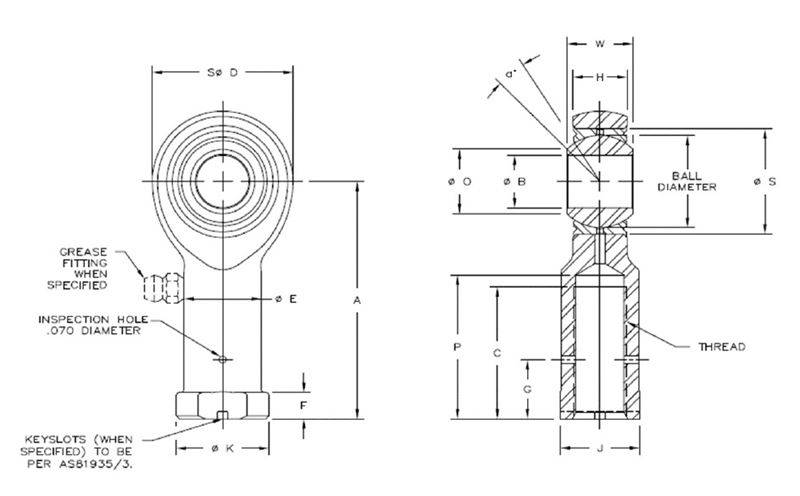

a - Misalignment Angle
12 º
Radial Clearance in.
.002 Max.
Ultimate Radial Static Load Capacity
80,547 lbs
Note
For dimensional tolerances of listed features, see the PDF version of the S222 suplement catalog under the View Product Catalogs" tab from the home page."
