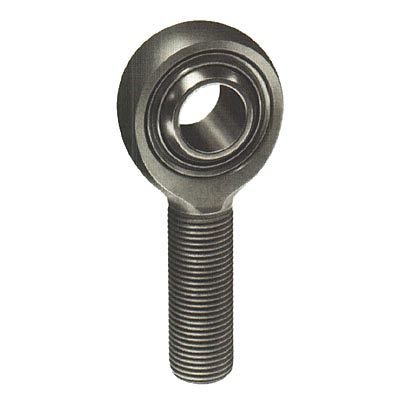

Timken ASXBK-7PF-10
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock

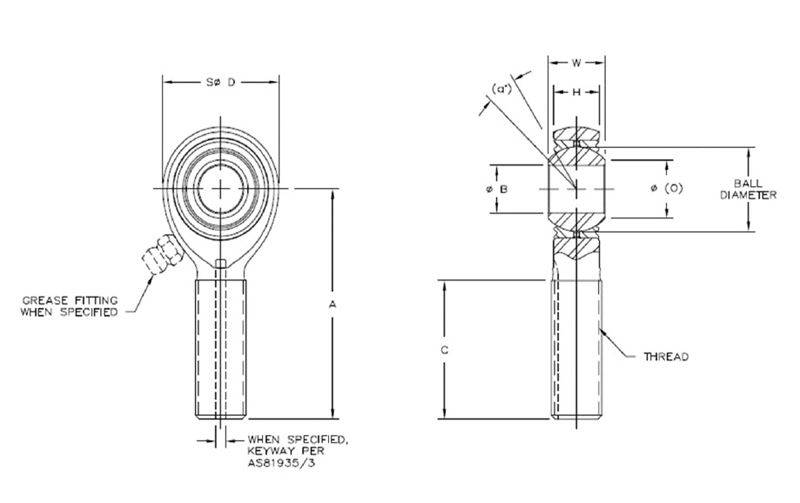

Specifications
Part Number
ASXBK-7PF-10
Thread Type
Left Hand
Thread Configuration
Male
Thread Size
1/2-20
Thread Class
UNJF-3A-LH
a - Misalignment Angle
10 º
Radial Clearance in.
.002 Max.
Ultimate Radial Static Load Capacity
Consult Engineering Department
Keyway
Keyway
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the View Product Catalogs" tab from the home page."
