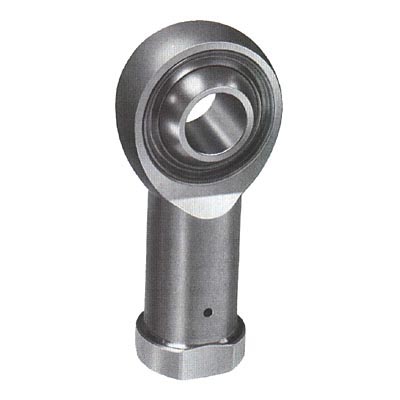

Timken ASXG-12T
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
ASXG-12T
Thread Type
Left Hand
Thread Configuration
Female
Thread Size
7/8-14
Thread Class
UNJF-3B-LH
a - Misalignment Angle
13 º
Ultimate Radial Static Load Capacity
33,457 lbs.
Note

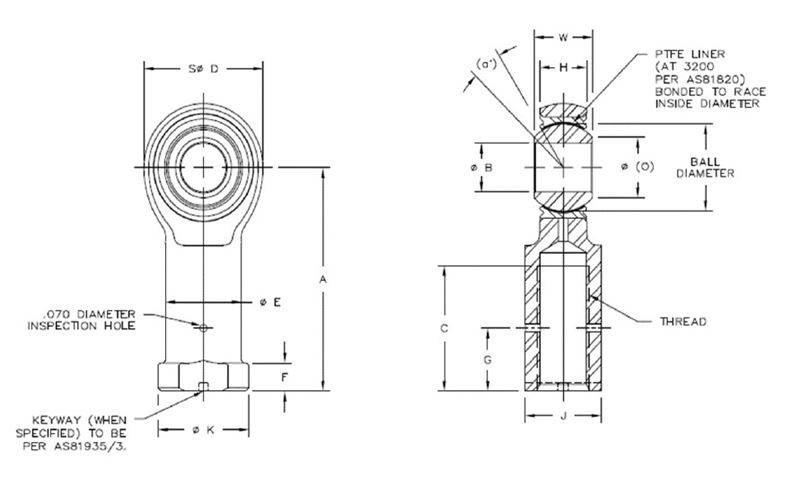

For dimensional tolerances of listed features, see the PDF version of the catalog under the View Product Catalogs" tab from the home page."
