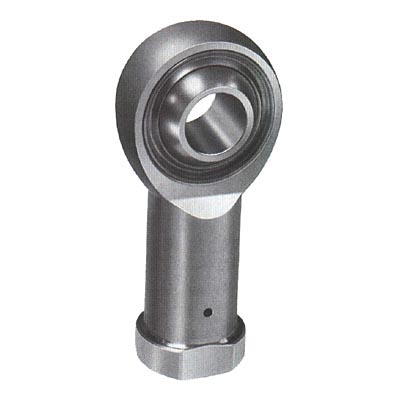

Timken ASXGK-10T
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
ASXGK-10T
Thread Type
Left Hand
Thread Configuration
Female
Thread Size
3/4-16
Thread Class
UNJF-3B-LH
a - Misalignment Angle
12 º
Ultimate Radial Static Load Capacity
25,254 lbs.
Keyway
Keyway
Note

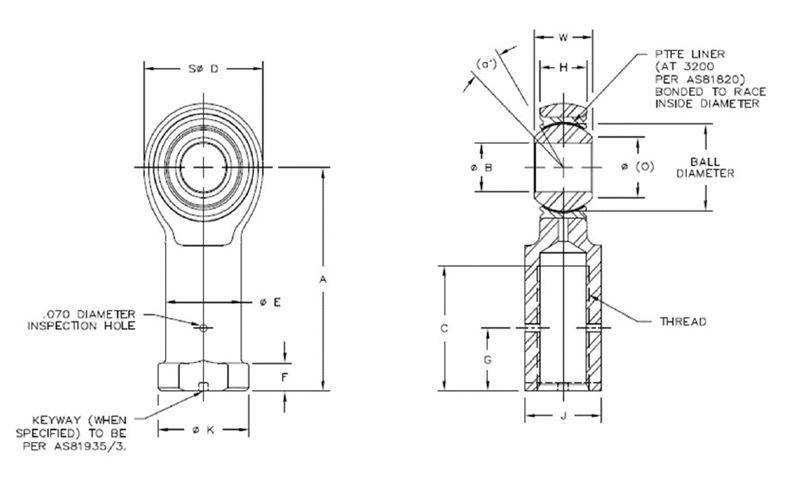

For dimensional tolerances of listed features, see the PDF version of the catalog under the View Product Catalogs" tab from the home page."
