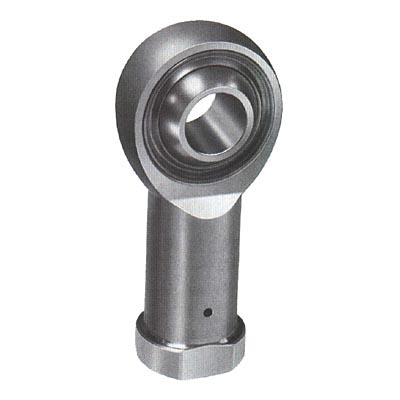

Timken ASXGK-4Z-10
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
ASXGK-4Z-10
Thread Type
Left Hand
Thread Configuration
Female
Thread Size
5/16-24
Thread Class
UNJF-3B-LH
a - Misalignment Angle
5 º
Ultimate Radial Static Load Capacity
Consult Engineering
Keyway
Keyway
Note

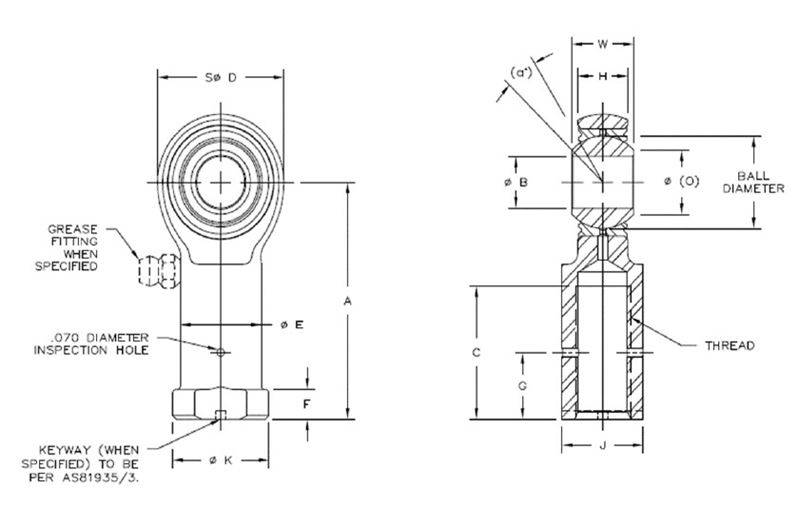

For dimensional tolerances of listed features, see the PDF version of the catalog under the View Product Catalogs tab from the home page.""
