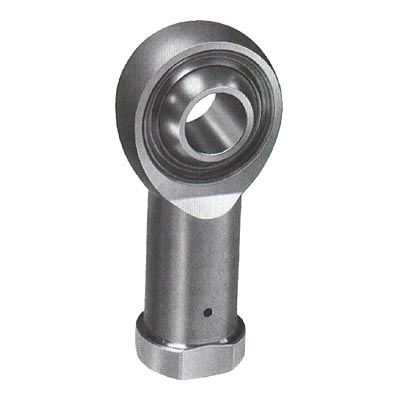

Timken ASXW-4F-10
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
ASXW-4F-10
Thread Type
Right Hand
Thread Configuration
Female
Thread Size
5/16-24
Thread Class
UNJF-3B
a - Misalignment Angle
5 º
Ultimate Radial Static Load Capacity
Consult Engineering
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the View Product Catalogs tab from the home page.""
