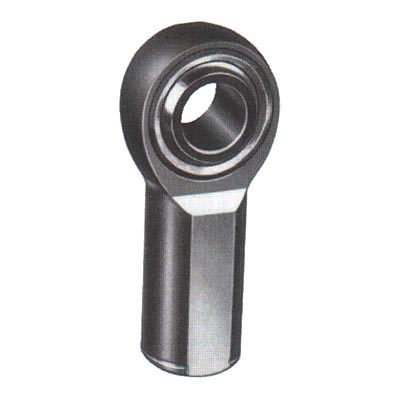

Timken AW-14F
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
AW-14F
Thread Type
Right Hand
Thread Configuration
Female
Thread Size
7/8-14
Thread Class
UNF-3B

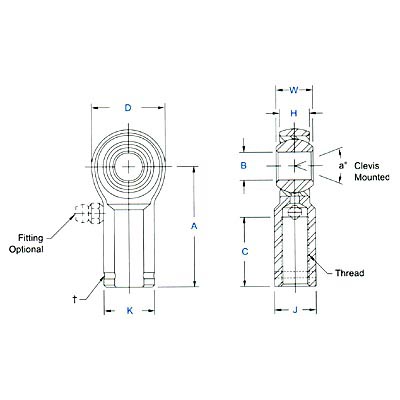

a - Misalignment Angle Clevis Mounted
7 º
Ultimate Radial Static Load Capacity
Consult Engineering Department
Type of Lubrication
Flush Fitting
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
