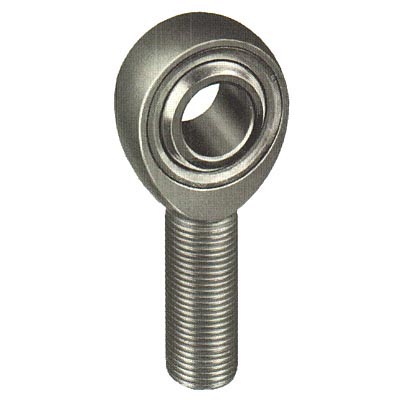

Timken BM-8F
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
BM-8F
Thread Type
Right Hand
Thread Configuration
Male
Thread Size
1/2-20
Thread Class
UNF-3A

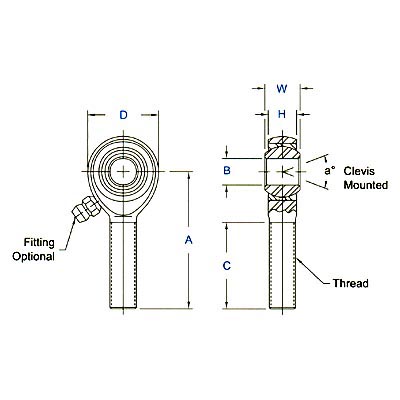

a - Misalignment Angle Clevis Mounted
12 º
Ultimate Radial Static Load Capacity
Consult Engineering Department
Options
Stud
Type of Lubrication
Flush Fitting
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
