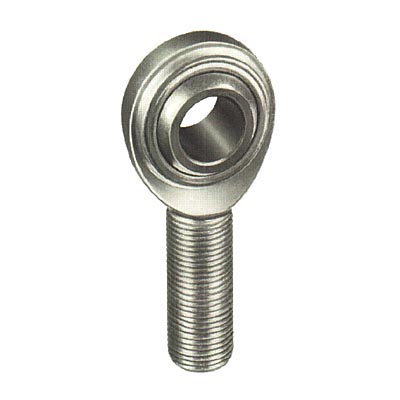

Timken CAB-12
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
CAB-12
Thread Type
Left Hand
Thread Configuration
Male
Thread Size
3/4-16
Thread Class
UNF-3A-LH

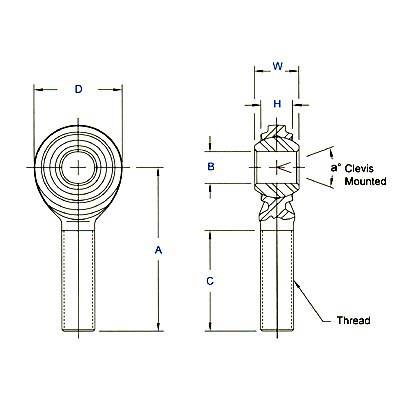

a - Misalignment Angle Clevis Mounted
24 º
Ultimate Radial Static Load Capacity
24,471 lbs
Options
Stud
Type of Lubrication
None
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
