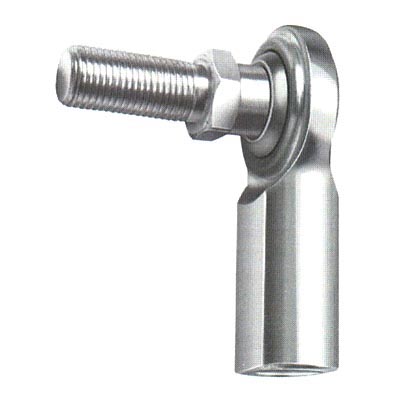

Timken CG-3S
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock

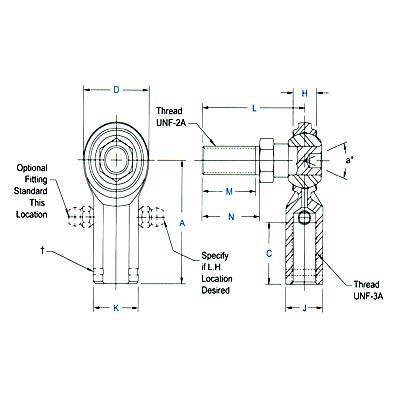

Specifications
Part Number
CG-3S
Thread Type
Left Hand
Thread Configuration
Female
Thread Size
10-32
Thread Class
UNF-2B-LH
Thread Class Stud
UNF-2A
a - Misalignment Angle Clevis Total
45 º
Ultimate Radial Static Load Capacity
240 lbs
Lubrication Options
None
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
