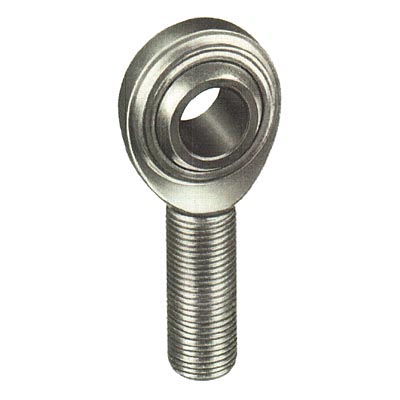

Timken CM-6ET
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
CM-6ET
Thread Type
Right Hand
Thread Configuration
Male
Thread Size
3/8-24
Thread Class
UNF-3A

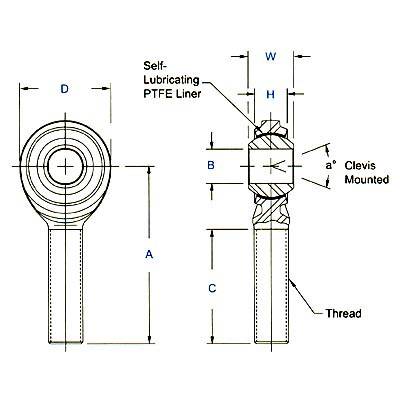

a - Misalignment Angle Clevis Mounted
18 º
Ultimate Radial Static Load Capacity
8,627 lbs
Options
Stud
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
