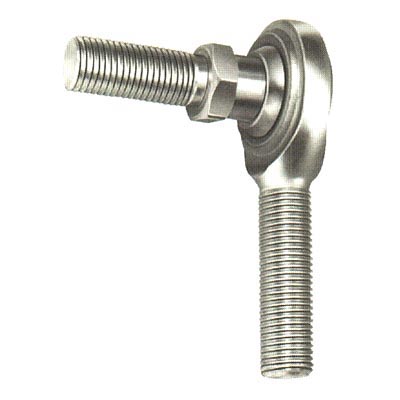

Timken CM-7S
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
CM-7S
Thread Type
Right Hand
Thread Configuration
Male
Thread Size
7/16-20
Thread Class
UNF-3A
Thread Class Stud
UNF-2A

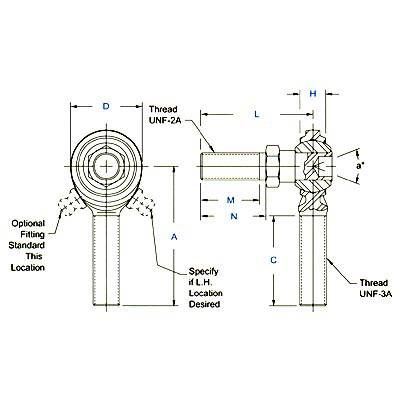

a - Misalignment Angle Total
44 º
Ultimate Radial Static Load Capacity
1,269 lbs
Lubrication Options
Zerk Fitting or Flush Fitting
Grease Fitting Location
Right Hand or Left Hand
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
