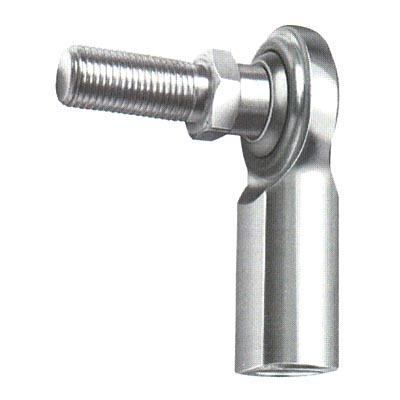

Timken CW-12S
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
CW-12S
Thread Type
Right Hand
Thread Configuration
Female
Thread Size
3/4-16
Thread Class
UNF-2B
Thread Class Stud
UNF-2A
a - Misalignment Angle Clevis Total
50 º
Ultimate Radial Static Load Capacity
2,841 lbs
Lubrication Options
Zerk Fitting or Flush Fitting
Grease Fitting Location
Right Hand or Left Hand
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
