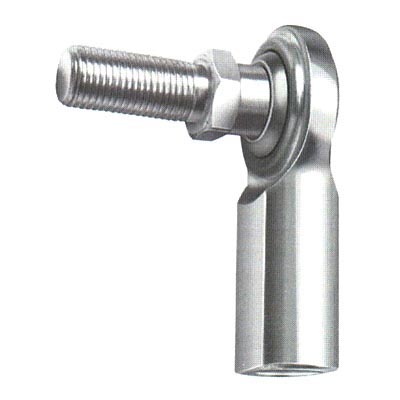

Timken CW-3S
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
CW-3S
Thread Type
Right Hand
Thread Configuration
Female
Thread Size
10-32
Thread Class
UNF-2B
Thread Class Stud
UNF-2A
a - Misalignment Angle Clevis Total
45 º
Ultimate Radial Static Load Capacity
240 lbs
Lubrication Options
None
Note

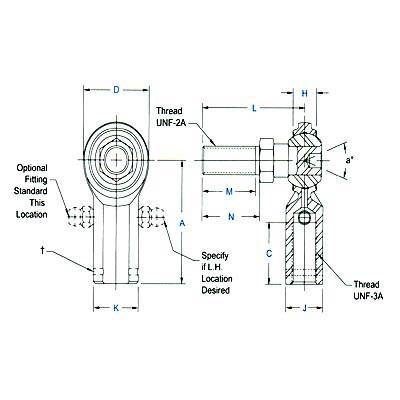

For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
