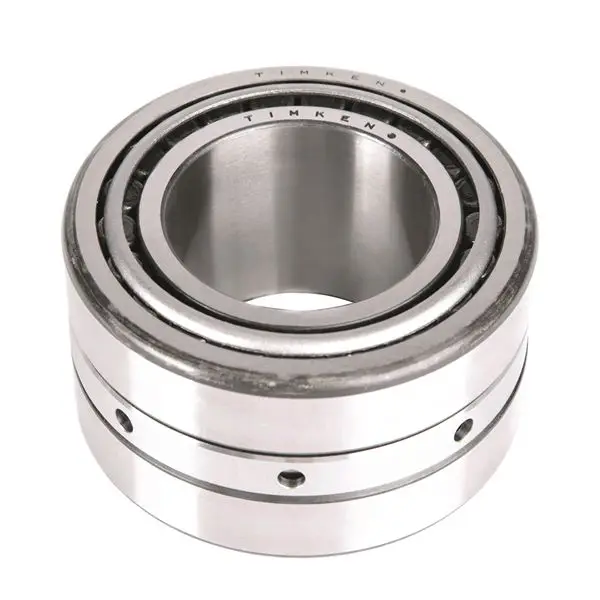

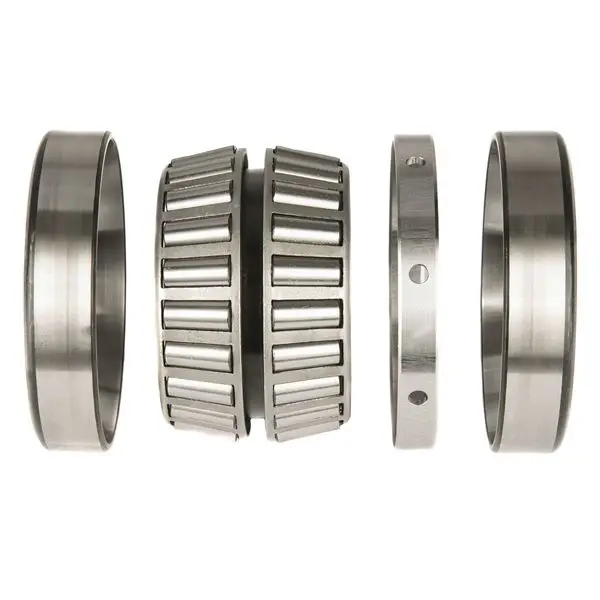

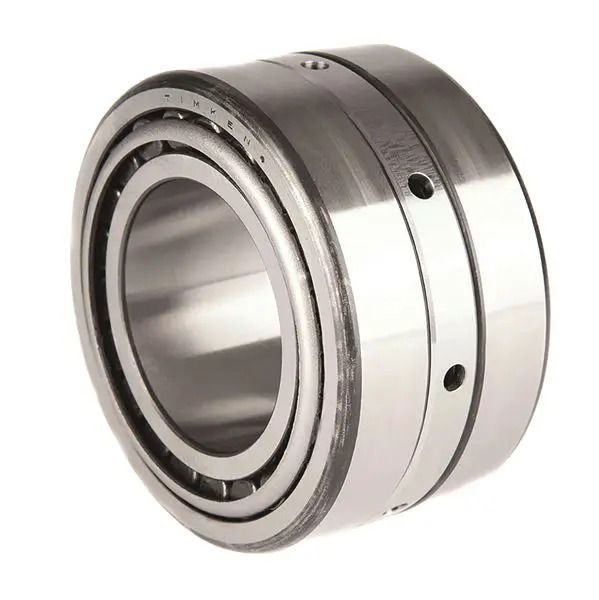

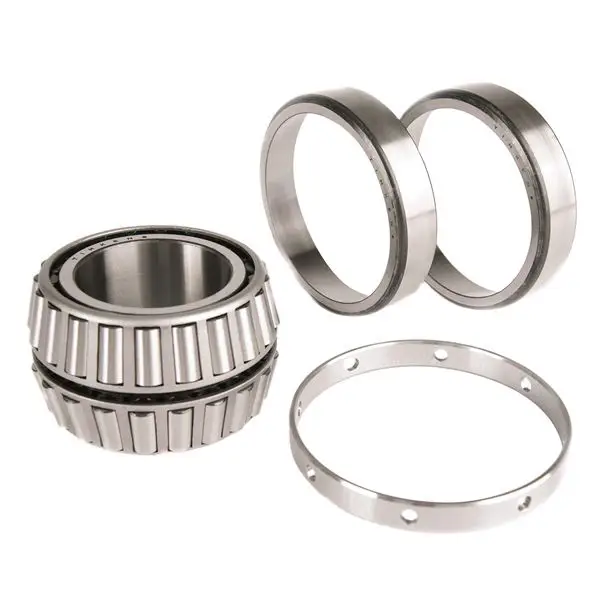

Timken EE130904D – 131400
Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
130000
Cone Part Number
EE130904D
Cup Part Number
131400
Design Unit
Inch
Cage Material
Stamped Steel
Note
This part has a non-standard shoulder design. Please email customer CAD for shoulder details to ensure the proper design of mating components.
Related Assembly Number(s)
EE130904D-90086
Dimensions
d - Bore
228.600 mm
D - Cup Outer Diameter
355.6 mm
B - Double Cone Width
127.000 mm
C - Cup Width
49.213 mm
T - Bearing Width across Cups
120.650 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
1.5 mm
r - Cup Backface "To Clear" Radius2
1.52 mm
da - Cone Frontface Backing Diameter
247 mm
Db - Cup Backface Backing Diameter
328.93 mm
Ab - Cage-Cone Frontface Clearance
1.3 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)3
206000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)4
1390000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)5
359000 N
C6
117000 N
Factors
K - Factor7
1.77
e - ISO Factor8
0.33
Y1 - ISO Factor9
2.04
Y2 - ISO Factor10
3.04
Cg - Geometry Factor11
0.136
