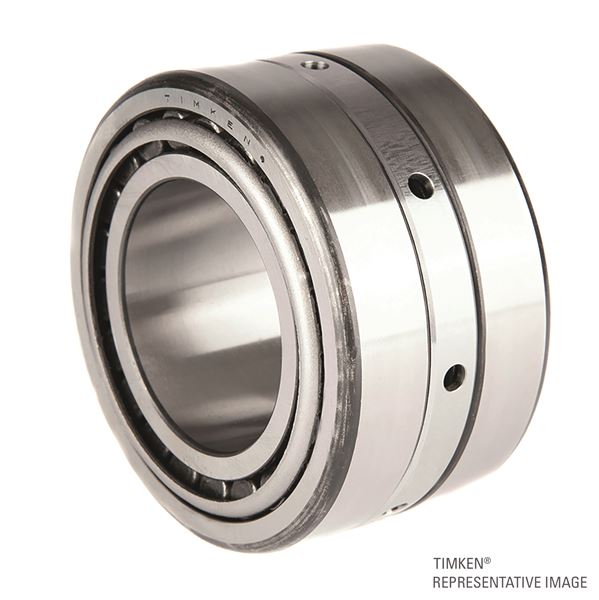

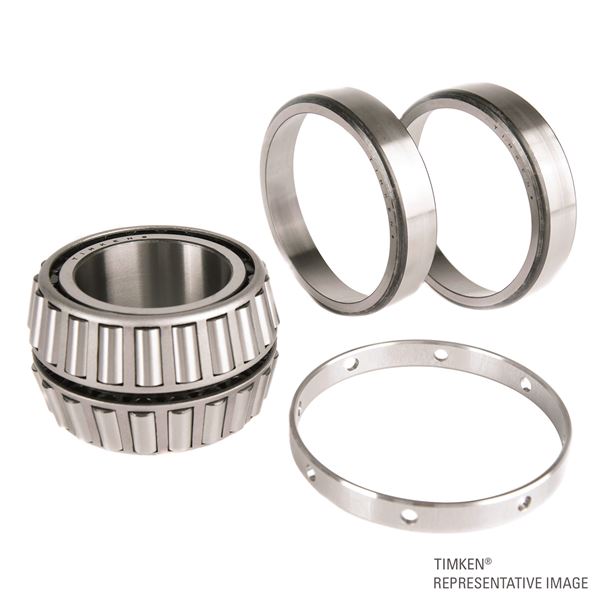

Timken EE329118D – 329172
Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
329000
Cone Part Number
EE329118D
Cup Part Number
329172
Design Unit
Inch
Cage Material
Stamped Steel
Dimensions
d - Bore
298.450 mm
D - Cup Outer Diameter
438.048 mm
B - Double Cone Width
131.763 mm
C - Cup Width
53.975 mm
T - Bearing Width across Cups
131.763 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.300 mm
r - Cup Backface "To Clear" Radius2
3.30 mm
da - Cone Frontface Backing Diameter
323 mm
Db - Cup Backface Backing Diameter
410.00 mm
Ab - Cage-Cone Frontface Clearance
3.8 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)3
280000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)4
1880000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)5
487000 N
C6
159000 N
Factors
K - Factor7
1.76
e - ISO Factor8
0.33
Y1 - ISO Factor9
2.04
Y2 - ISO Factor10
3.03
Cg - Geometry Factor11
0.164
