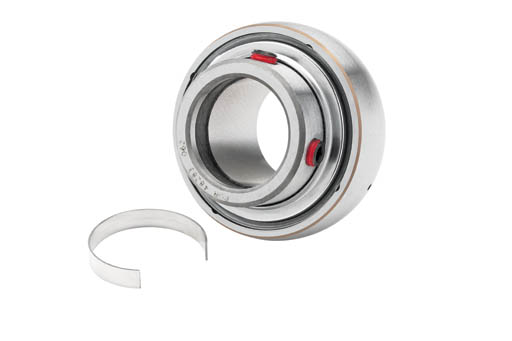

Timken ER18
Fafnir® Wide Inner Ring Setscrew Locking Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Relubricatable
O.D. Type
Cylindrical OD
Sub Series
ER
Seal Type
Narrow Shroud
Basic Outer Ring Size
206

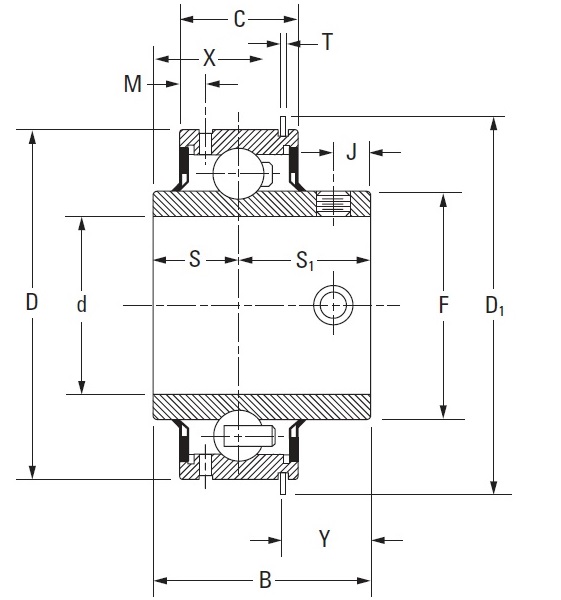

Dimensions
Outside Diameter D
62 mm
Inner Ring Width B
39.12 mm
Outside Ring Width C
22.17 mm
Radius r
0.6 mm
Center of Bearing from End S
15.88 mm
Dimension S1
23.24 mm
Dimension F
40.3 mm
Dimension J
8.64 mm
Dimension M
5.56 mm
Dimension D1
67.29 mm
Dimension T
1.65 mm
Dimension X
20.17 mm
Dimension Y
18.95 mm
Set Screw Size
M6x1
Number of Set Screws
2
Angle between Set Screws
90 º
Basic Load Ratings
Static Load Rating
1233.2 N
Dynamic Load Rating
21534 N
