Timken ER55
Fafnir® Wide Inner Ring Setscrew Locking Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Industrial
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Relubricatable
O.D. Type
Cylindrical OD
Sub Series
ER
Seal Type
Narrow Shroud
Basic Outer Ring Size
217

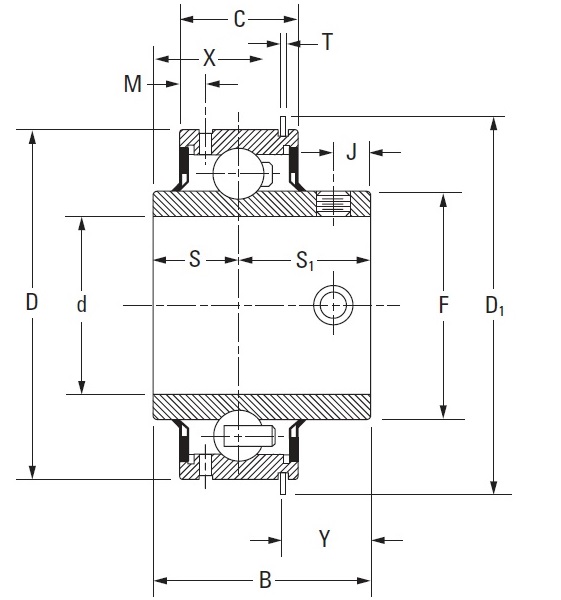

Dimensions
Outside Diameter D
150 mm
Inner Ring Width B
85.72 mm
Outside Ring Width C
49.21 mm
Radius r
0.6 mm
Center of Bearing from End S
34.16 mm
Dimension S1
51.57 mm
Dimension F
104.84 mm
Dimension J
11.91 mm
Dimension M
11.02 mm
Dimension D1
159.5 mm
Dimension T
2.8 mm
Dimension X
51.21 mm
Dimension Y
34.53 mm
Set Screw Size
M12x1.75
Number of Set Screws
2
Angle between Set Screws
90 º
Basic Load Ratings
Static Load Rating
61716 N
Dynamic Load Rating
92796 N
