Timken GYM1300KRRB
Fafnir® Wide Inner Ring Setscrew Locking Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Medium-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Relubricatable
O.D. Type
Spherical OD
Sub Series
GYM..KRRB
Seal Type
Shroud Seal

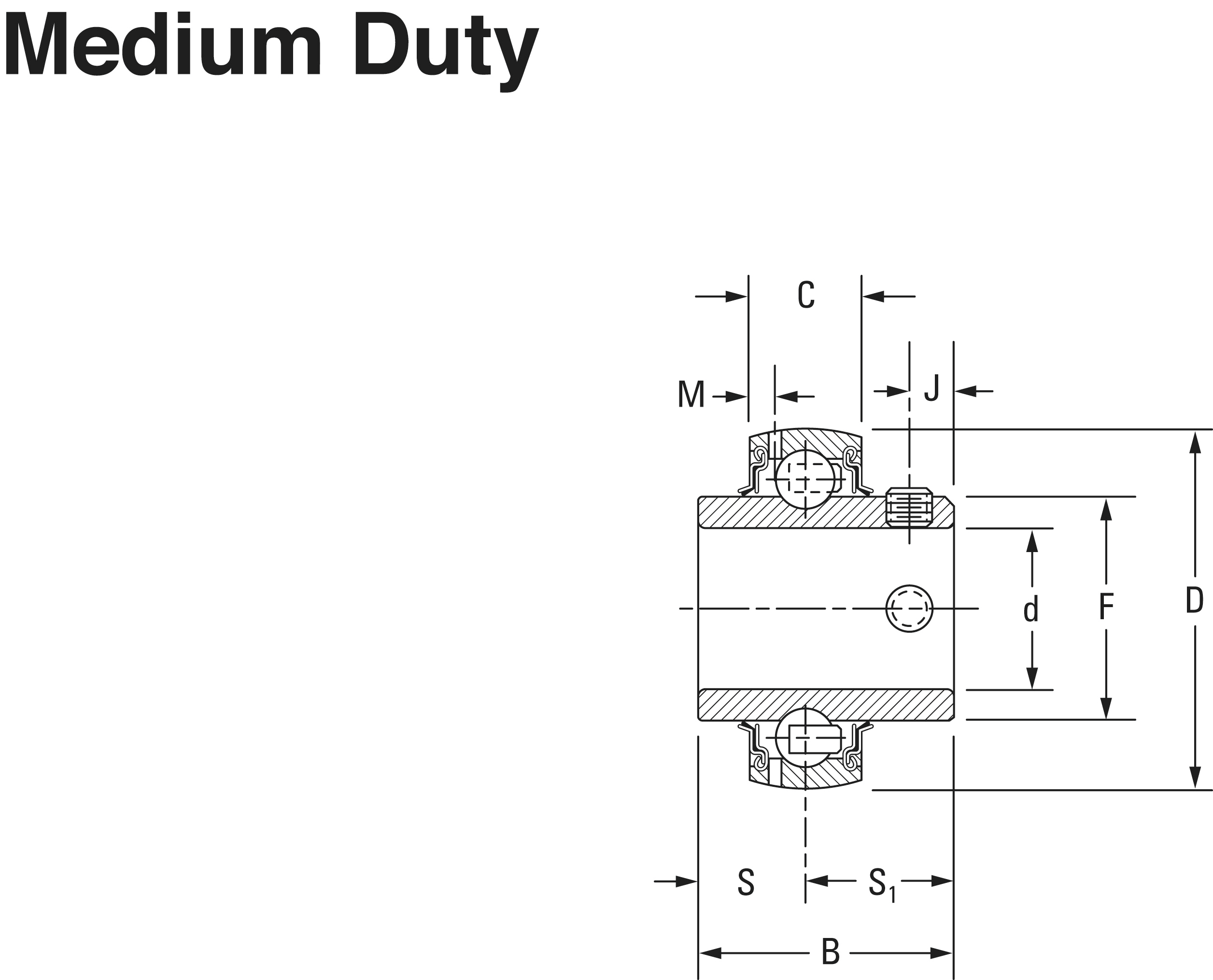

Dimensions
Outside Diameter D
140 mm
Inner Ring Width B
77.8 mm
Outside Ring Width C
29 mm
Radius r
0.6 mm
Center of Bearing from End S
33.32 mm
Dimension S1
44.45 mm
Dimension F
91.92 mm
Dimension J
12 mm
Dimension M
5.56 mm
Set Screw Size
M12 x 1.75
Number of Set Screws
2
Angle between Set Screws
90 º
Basic Load Ratings
Static Load Rating
54200 N
Dynamic Load Rating
79400 N
