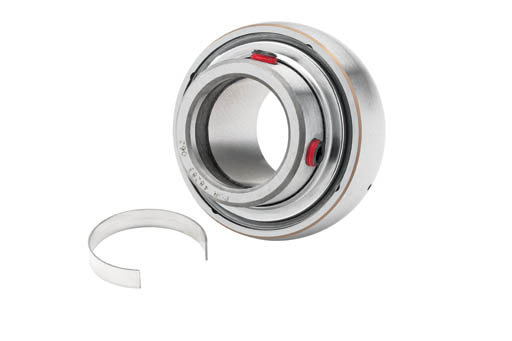

Timken GKY103RRB
Fafnir® Wide Inner Ring Setscrew Locking Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Standard
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Stainless steel
Lubrication Type
Relubricatable
O.D. Type
Spherical OD
Sub Series
GKY..RRB
Alternate Part Name
GKY103RRB
Seal Type
Shroud Seal
Dimensions
Outside Diameter D
62 mm
Inner Ring Width B
31.37 mm
Outside Ring Width C
18 mm
Radius r
0.6 mm
Center of Bearing from End S
9 mm
Dimension S1
22.37 mm
Dimension F
40.39 mm
Dimension J
5.33 mm
Set Screw Size
1/4-28
Number of Set Screws
2
Angle between Set Screws
90 º
Basic Load Ratings
Static Load Rating
1556 N
