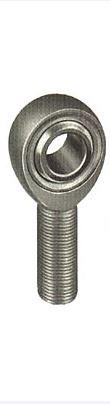

Timken GMB-3M-680
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
GMB-3M-680
Thread Type
Left Hand
Thread Configuration
Male
Ball Shoulder Configuration

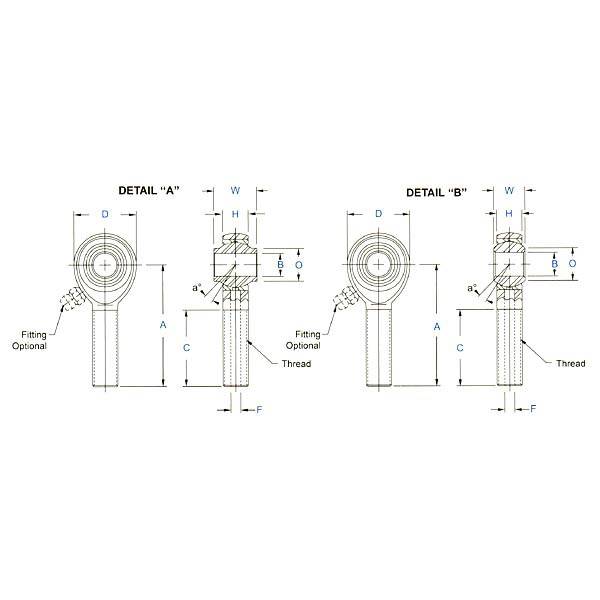

See Detail "B"
Thread Size
3/8-24
Thread Class
UNF-3A-LH
a - Misalignment Angle
18 º
Ultimate Radial Static Load Capacity
3,269 lbs
Type of Lubrication
None
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
