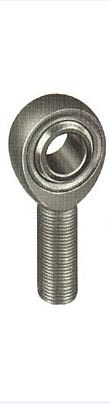

Timken GMB-4M-470
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
GMB-4M-470
Thread Type
Left Hand
Thread Configuration
Male

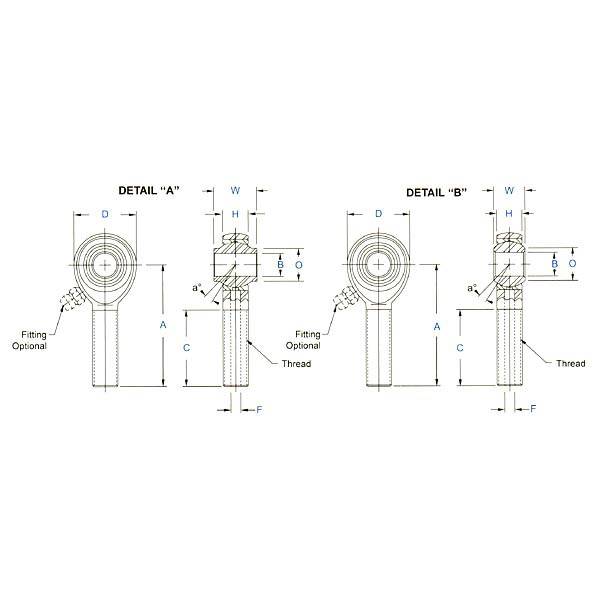

Ball Shoulder Configuration
See Detail "B"
Thread Size
1/4-28
Thread Class
UNF-3A-LH
a - Misalignment Angle
18 º
Ultimate Radial Static Load Capacity
2,158 lbs
Type of Lubrication
None
Note
For dimensional tolerances of listed features, see the PDF version of the catalog under the "View Product Catalogs" tab from the home page.
