Timken GYA115RR
Fafnir® Wide Inner Ring Setscrew Locking Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Standard
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Relubricatable
O.D. Type
Cylindrical OD
Sub Series
GYA..RR
Seal Type
Narrow Shroud

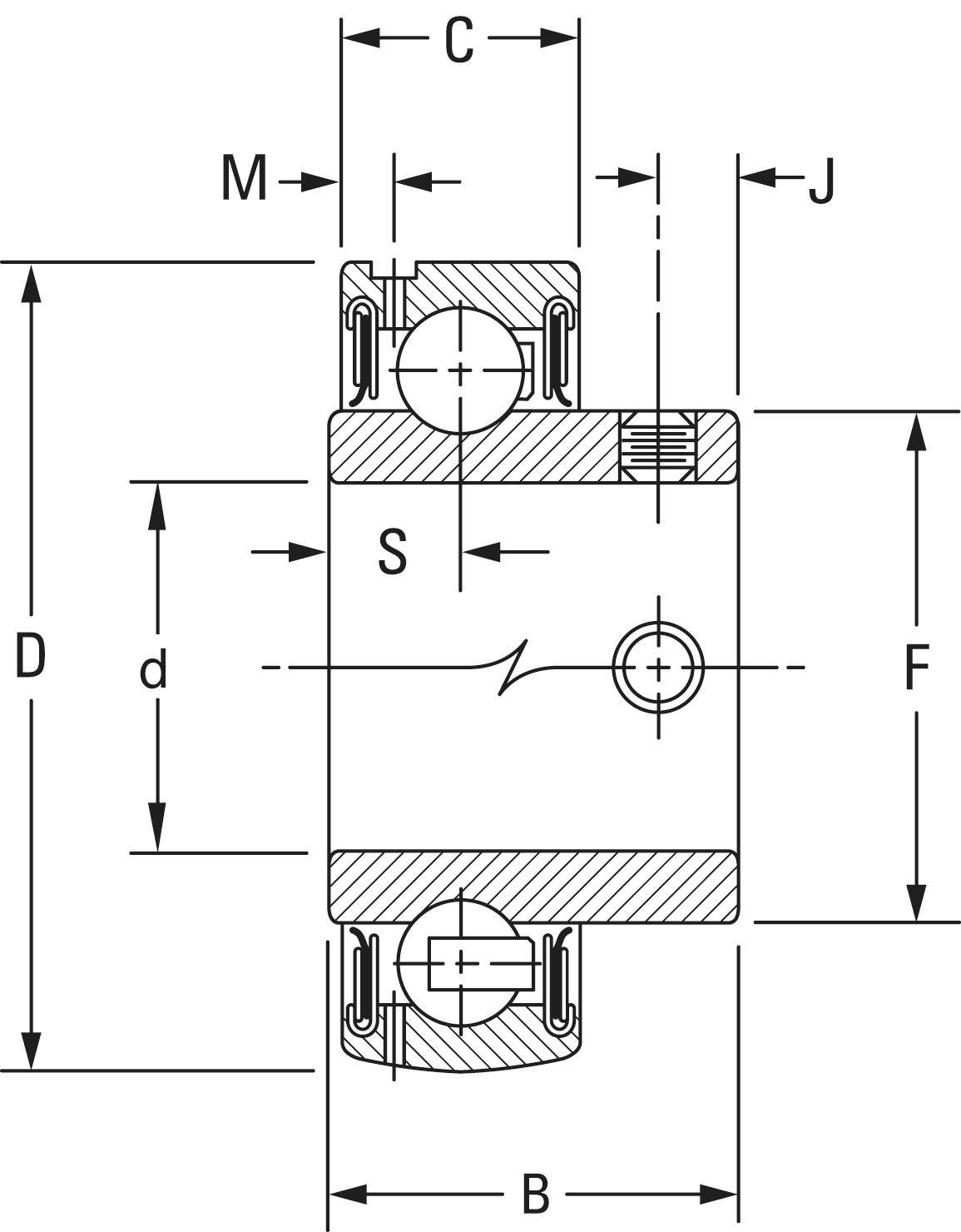

Dimensions
Outside Diameter D
90 mm
Inner Ring Width B
44.3 mm
Outside Ring Width C
22 mm
Radius r
0.6 mm
Center of Bearing from End S
13.46 mm
Dimension S1
30.84 mm
Dimension F
62.7 mm
Dimension J
9.02 mm
Dimension M
4.44 mm
Set Screw Size
M10x1.5
Number of Set Screws
2
Angle between Set Screws
90 º
Basic Load Ratings
Static Load Rating
23200 N
Dynamic Load Rating
38900 N
