Timken GYA203RRB
Fafnir® Wide Inner Ring Setscrew Locking Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Standard
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Relubricatable
O.D. Type
Spherical OD
Sub Series
GYA..RRB
Seal Type
Narrow Shroud

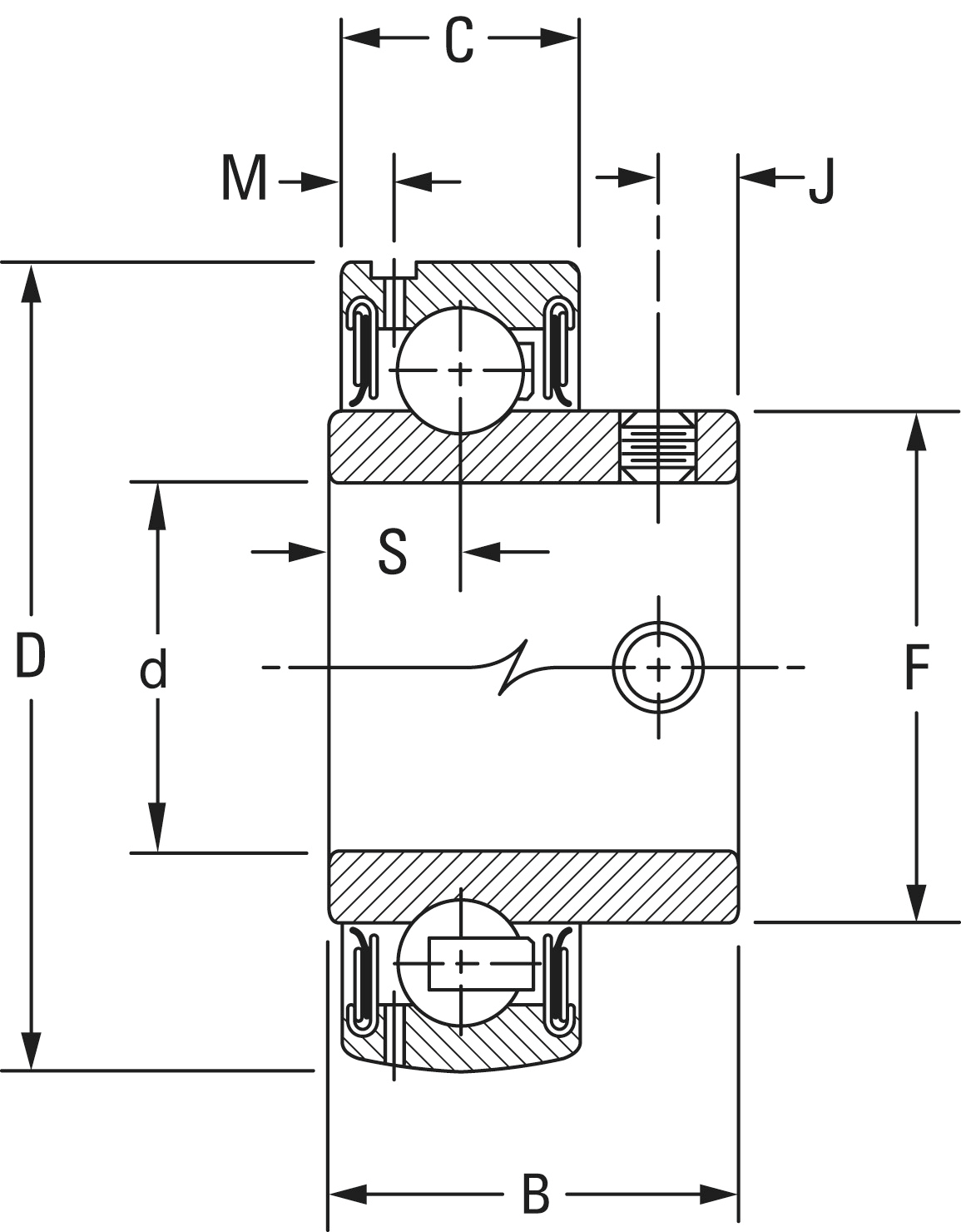

Dimensions
Outside Diameter D
100 mm
Inner Ring Width B
46.6 mm
Outside Ring Width C
24 mm
Radius r
0.6 mm
Center of Bearing from End S
14.6 mm
Dimension S1
32 mm
Dimension F
69.8 mm
Dimension J
9.02 mm
Dimension M
4.9 mm
Set Screw Size
M10x1.5
Number of Set Screws
2
Angle between Set Screws
90 º
Basic Load Ratings
Static Load Rating
29200 N
Dynamic Load Rating
48100 N
