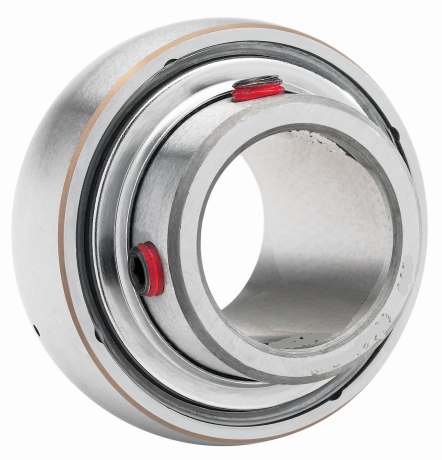

Timken GYE25KRRB
Fafnir® Wide Inner Ring Setscrew Locking Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Industrial
Shaft Size d
25 mm
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Relubricatable
O.D. Type
Spherical OD
Sub Series
GY…KRRB
Alternate Part Name
GYE25KRRB
Seal Type
Shroud Seal

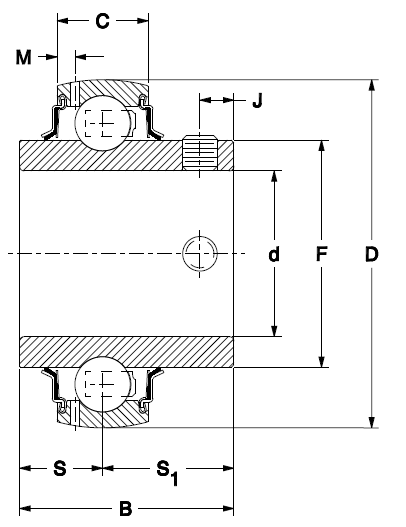

Dimensions
Outside Diameter D
52 mm
Inner Ring Width B
34.171 mm
Outside Ring Width C
15 mm
Radius r
0.6 mm
Center of Bearing from End S
14.27 mm
Dimension S1
19.88 mm
Dimension F
33.83 mm
Dimension J
6.0705 mm
Dimension M
3.86 mm
Set Screw Size
M6x1
Number of Set Screws
2
Angle between Set Screws
90 º
Basic Load Ratings
Static Load Rating
7800 N
Dynamic Load Rating
15500 N
