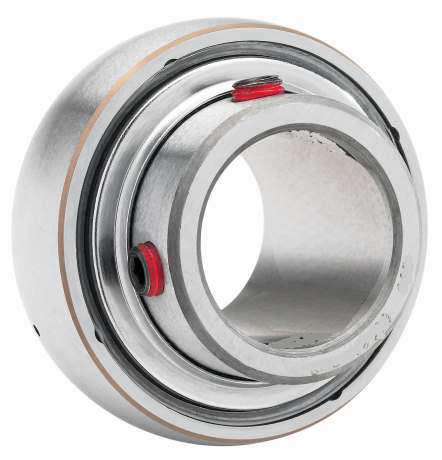

Timken GYE30KRRB
Fafnir® Wide Inner Ring Setscrew Locking Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Industrial
Shaft Size d
30 mm
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Relubricatable
O.D. Type
Spherical OD
Sub Series
GYE..KRRB
Alternate Part Name
GYE30KRRB
Seal Type
Shroud Seal

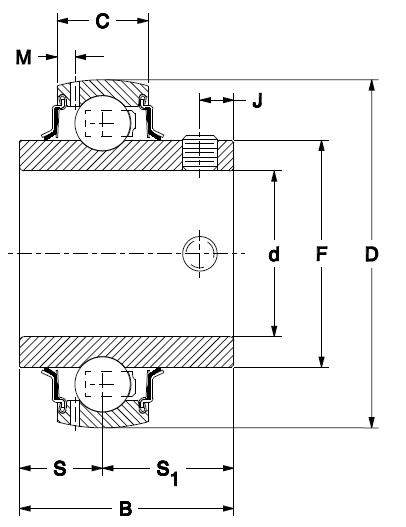

Dimensions
Outside Diameter D
62 mm
Inner Ring Width B
38.158 mm
Outside Ring Width C
18 mm
Radius r
0.6 mm
Center of Bearing from End S
15.88 mm
Dimension S1
22.268 mm
Dimension F
40.31 mm
Dimension J
7.645 mm
Dimension M
3.96 mm
Set Screw Size
M6x1
Number of Set Screws
2
Angle between Set Screws
90 º
Basic Load Ratings
Static Load Rating
11300 N
Dynamic Load Rating
21600 N
