Timken GYM1203KRRB
Fafnir® Wide Inner Ring Setscrew Locking Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Medium-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Relubricatable
O.D. Type
Spherical OD
Sub Series
GYM..KRRB
Seal Type
Shroud Seal

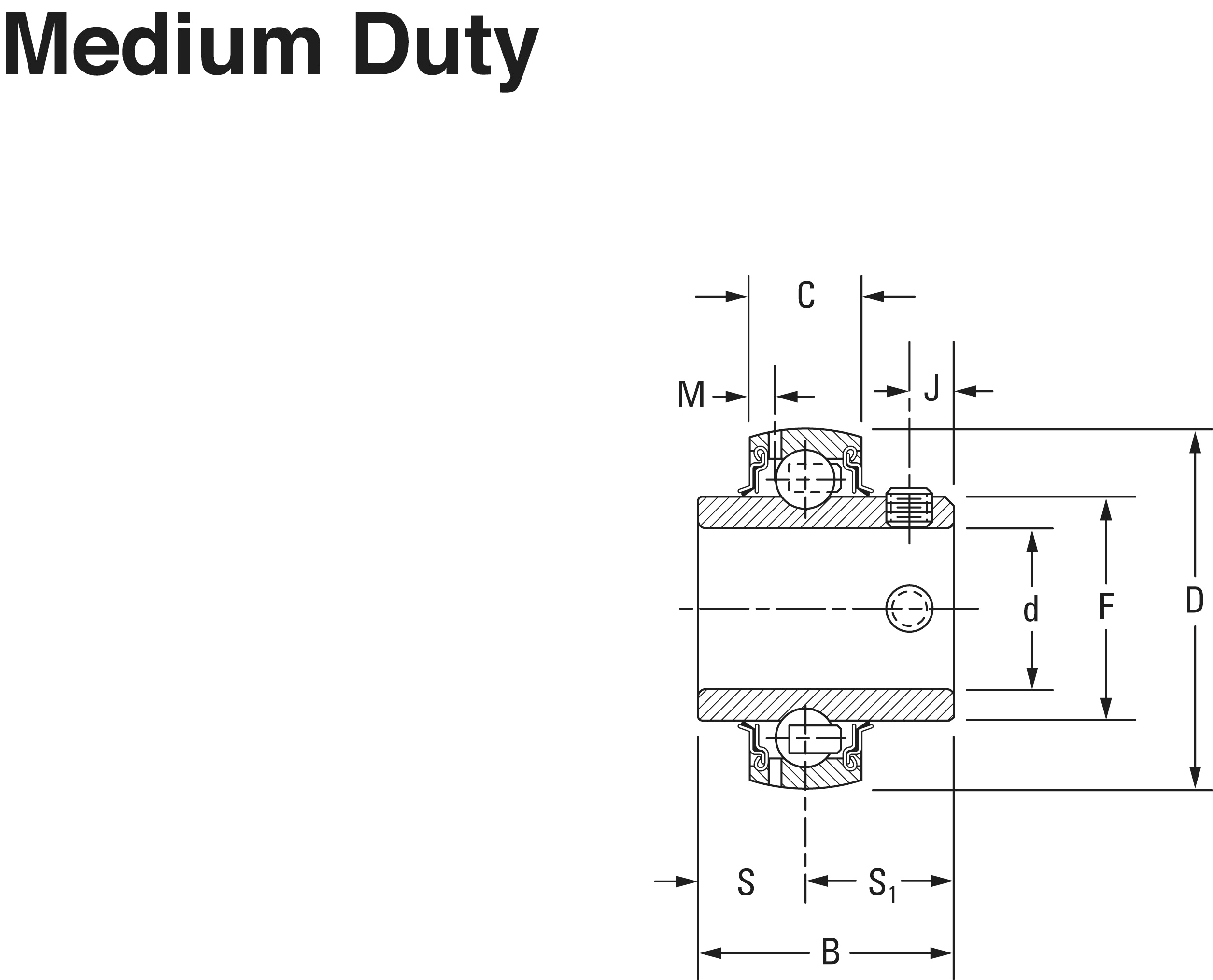

Dimensions
Outside Diameter D
110 mm
Inner Ring Width B
65.07 mm
Outside Ring Width C
27 mm
Radius r
0.6 mm
Center of Bearing from End S
25.4 mm
Dimension S1
39.67 mm
Dimension F
76.48 mm
Dimension J
10 mm
Dimension M
5.13 mm
Set Screw Size
M10 x 1.5
Number of Set Screws
2
Angle between Set Screws
90 º
Basic Load Ratings
Static Load Rating
35900 N
Dynamic Load Rating
58200 N
