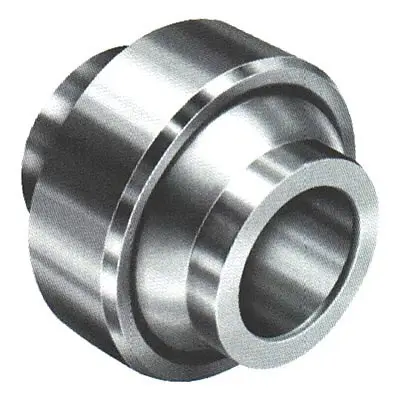

Timken HAB-24EG
Rod End and Spherical Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Part Number
HAB-24EG
Bearing Type
Grooved
a - Misalignment Angle
21 º
Radial Clearance in.
.002 Max.
Radial Static Limit Load Capacity
222,208 lbs
Note
For dimensional tolerances of listed features, see the PDF version of the S222 suplement catalog under the View Product Catalogs" tab from the home page."
