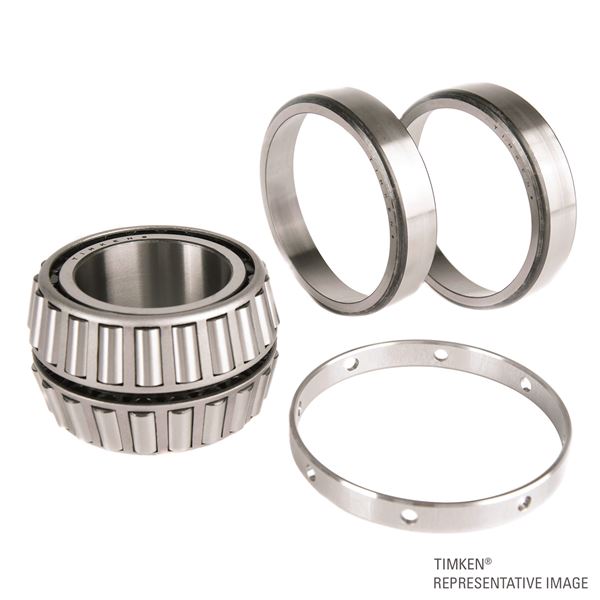

Timken HH231637D – HH231610
Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
HH231600
Cone Part Number
HH231637D
Cup Part Number
HH231610
Design Unit
Inch
Cage Material
Stamped Steel
Dimensions
d - Bore
127 mm
D - Cup Outer Diameter
288.925 mm
B - Double Cone Width
158.750 mm
C - Cup Width
57.150 mm
T - Bearing Width across Cups
149.225 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
13.20 mm
r - Cup Backface "To Clear" Radius2
6.35 mm
da - Cone Frontface Backing Diameter
171.46 mm
Db - Cup Backface Backing Diameter
255.02 mm
Ab - Cage-Cone Frontface Clearance
2.3 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)3
296000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)4
1990000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)5
516000 N
C6
162000 N
Factors
K - Factor7
1.83
e - ISO Factor8
0.32
Y1 - ISO Factor9
2.12
Y2 - ISO Factor10
3.15
Cg - Geometry Factor11
0.108
